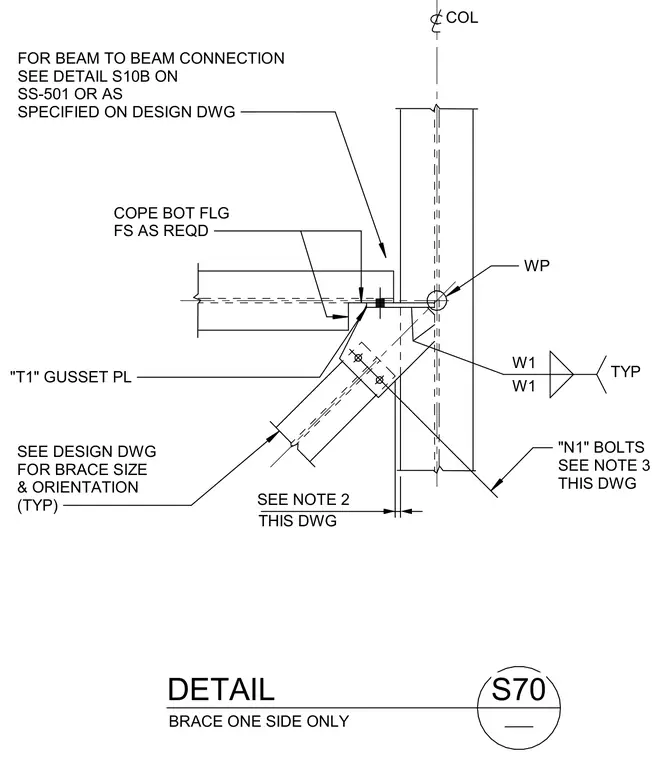

A structural brace frames into a column and beam intersection using a gusset plate welded to one side only. The brace member connects to the gusset plate using specified bolts, while the bottom flange of the intersecting beam is coped as required. Fillet welds secure the gusset plate to the column and beam framing elements based on design drawing specifications.
W1 W1 TYP WP COL THIS DWG BRACE ONE SIDE ONLY DETAIL S70 "N1" BOLTS SEE NOTE 3 THIS DWG SEE NOTE 2 "T1" GUSSET PL FOR BEAM TO BEAM CONNECTION SEE DETAIL S10B ON SS-501 OR AS SPECIFIED ON DESIGN DWG COPE BOT FLG FS AS REQD SEE DESIGN DWG FOR BRACE SIZE & ORIENTATION (TYP)
