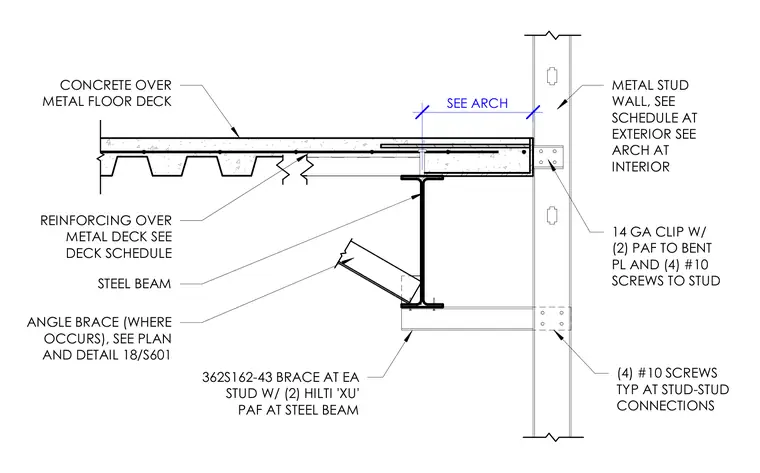

A cold-formed metal stud wall frames at the floor edge alongside a concrete-filled metal floor deck bearing on a structural steel beam. The metal stud connects to a bent plate using a fourteen-gauge clip fastened with two powder-actuated fasteners and four number ten screws to the stud. An angle brace where required uses a 362S162-43 member secured at each stud with two Hilti XU powder-actuated fasteners into the steel beam flange. Four number ten screws attach typical stud-to-stud connections. Concrete and reinforcing over the metal floor deck are sized per the deck schedule.
STEEL BEAM REINFORCING OVER METAL DECK SEE DECK SCHEDULE CONCRETE OVER METAL FLOOR DECK METAL STUD WALL, SEE SCHEDULE AT EXTERIOR SEE ARCH AT INTERIOR 14 GA CLIP W/ (2) PAF TO BENT PL AND (4) #10 SCREWS TO STUD ANGLE BRACE (WHERE OCCURS), SEE PLAN AND DETAIL 18/S601 SEE ARCH (4) #10 SCREWS TYP AT STUD-STUD CONNECTIONS 362S162-43 BRACE AT EA STUD W/ (2) HILTI 'XU' PAF AT STEEL BEAM
