Structural · S-A4CBB

Typical Steel Beam To Steel Beam Connection

Materials

Concrete Steel Metal (misc.)Composite

Elements

Columns Beams Floors / Slabs Decks Connections / Plates

Connections

Shear Stud / Composite

About this detail

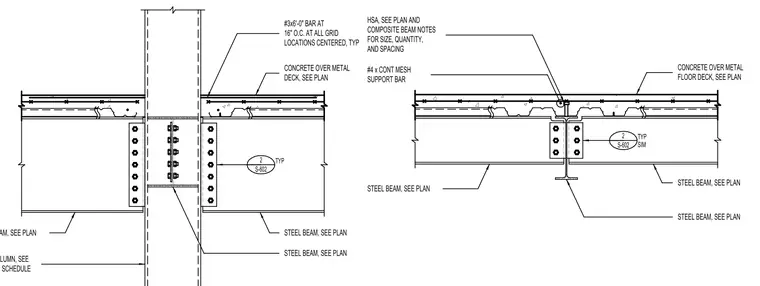

Steel framing connections tie structural steel beams into a steel column and girder assembly with bolted shear tab connections, supporting a concrete over metal floor deck. The concrete slab is reinforced with number 3 by six foot bars centered at sixteen inches on center typically at all grid locations, alongside a continuous number 4 mesh support bar. Shear studs or headed stud anchors are provided on the composite beams per plan and composite beam notes for sizing, quantity, and spacing. Steel beams and columns are sized per plan and schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
