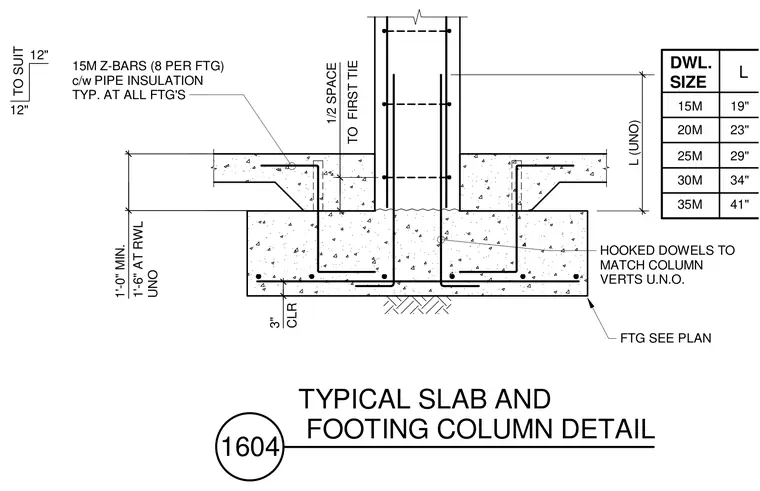

A reinforced concrete column bears on a concrete footing with hooked dowels matching the column vertical bars unless noted otherwise. The footing incorporates bottom reinforcing with a three-inch minimum clearance to the underside. A concrete slab connects to the column with fifteen-millimetre Z-bars at eight per footing complete with pipe insulation typically applied at all footings. A dowel length schedule defines development lengths ranging from nineteen inches for fifteen-millimetre bars up to forty-one inches for thirty-five-millimetre bars. The first tie is placed at one-half spacing from the top of the footing.
DWL. SIZE L 35M 30M 25M 20M 15M FTG SEE PLAN CLR TO FIRST TIE HOOKED DOWELS TO MATCH COLUMN VERTS U.N.O. 41" 34" 29" 23" 19" L (UNO) 3" 1'-0" MIN. 1'-6" AT RWL UNO 1/2 SPACE 15M Z-BARS (8 PER FTG) c/w PIPE INSULATION TYP. AT ALL FTG'S 12" 12" TO SUIT 1604 TYPICAL SLAB AND FOOTING COLUMN DETAIL
