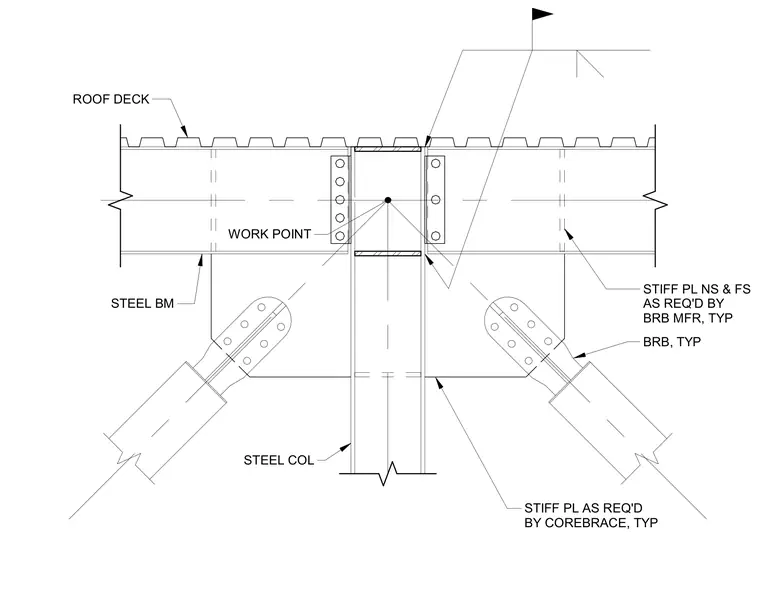

A buckling-restrained brace connects to a gusset plate welded to a steel column and steel beam framing system below a roof deck. Stiffener plates are provided on the near side and far side as required by the buckling-restrained brace manufacturer and CoreBrace specifications. Steel beams frame into the steel column with bolted shear tabs near the work point.
WORK POINT STEEL BM STIFF PL AS REQ'D BY COREBRACE, TYP STEEL COL BRB, TYP STIFF PL NS & FS AS REQ'D BY BRB MFR, TYP ROOF DECK
