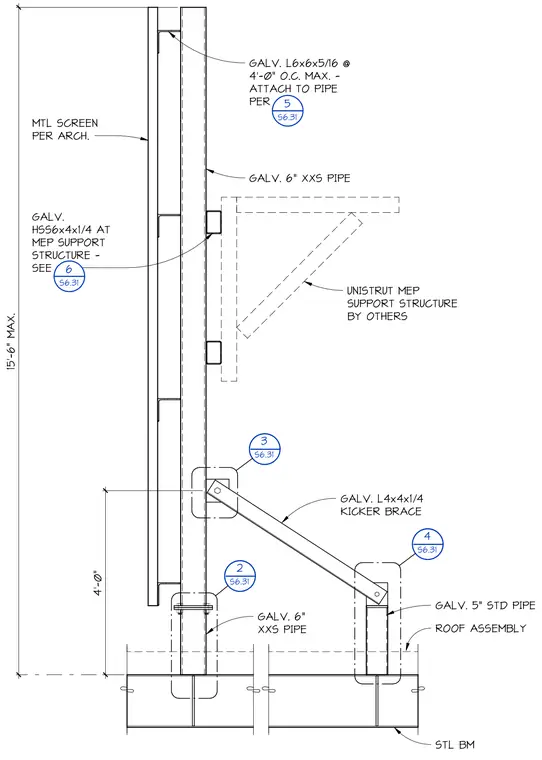

A roof-mounted screen wall stands a maximum of fifteen feet six inches high above the roof assembly. A galvanized six-inch extra-extra-strong pipe post fastens to a supporting steel beam and receives galvanized angle members spaced at four feet on center maximum to carry the architectural metal screen. A galvanized four-by-four-by-one-quarter-inch kicker brace extends back to a secondary galvanized five-inch standard pipe post connected to the roof framing for lateral stability. Additional structural support includes a galvanized hollow structural section six-by-four-by-quarter framing member for mechanical, electrical, and plumbing support structures by others.
15'-6" MAX. GALV. L6x6x5/16 @ 4'-0" O.C. MAX. - ATTACH TO PIPE PER MTL SCREEN PER ARCH. GALV. 6" XXS PIPE GALV. L4x4x1/4 KICKER BRACE 4'-0" GALV. 6" XXS PIPE ___ S6.31 3 ___ S6.31 4 ___ S6.31 2 GALV. 5" STD PIPE ROOF ASSEMBLY STL BM 5 S6.31 GALV. HSS6x4x1/4 AT MEP SUPPORT STRUCTURE - SEE 6 S6.31 UNISTRUT MEP SUPPORT STRUCTURE BY OTHERS
