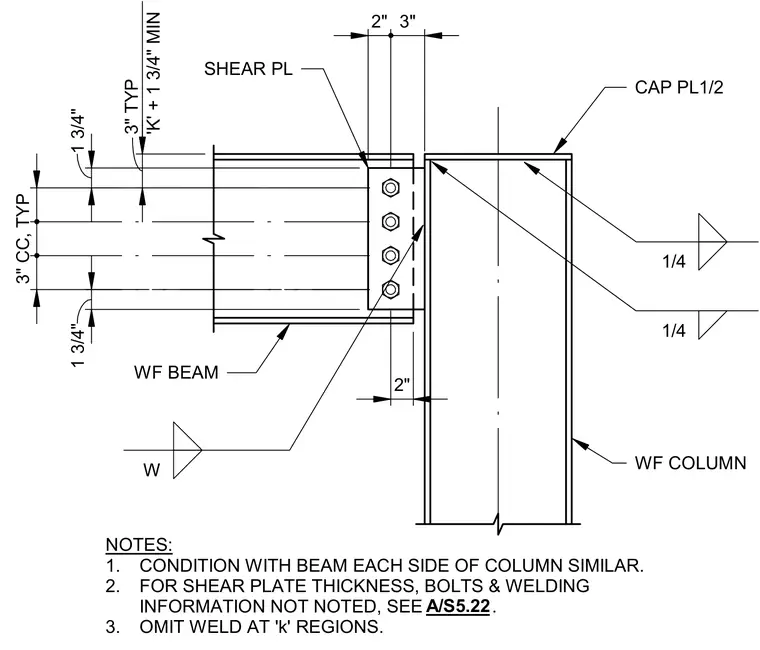

A wide flange beam frames into a wide flange column via a welded shear plate connecting the beam web. A one-half inch cap plate sits atop the column secured with quarter-inch fillet welds. Four bolts fasten the beam web to the shear plate with a three-inch center-to-center spacing and one-and-three-quarter-inch end distances. Welds are omitted at the column and beam k-regions to prevent stress concentrations.
WF COLUMN CAP PL1/2 2" WF BEAM A/S5.22 NOTES: 1. CONDITION WITH BEAM EACH SIDE OF COLUMN SIMILAR. 2. FOR SHEAR PLATE THICKNESS, BOLTS & WELDING INFORMATION NOT NOTED, SEE . 3. OMIT WELD AT 'k' REGIONS. SHEAR PL 2" 3" 1 3/4" 1 3/4" 3" CC, TYP 1/4 W 1/4 3" TYP 'K' + 1 3/4" MIN
