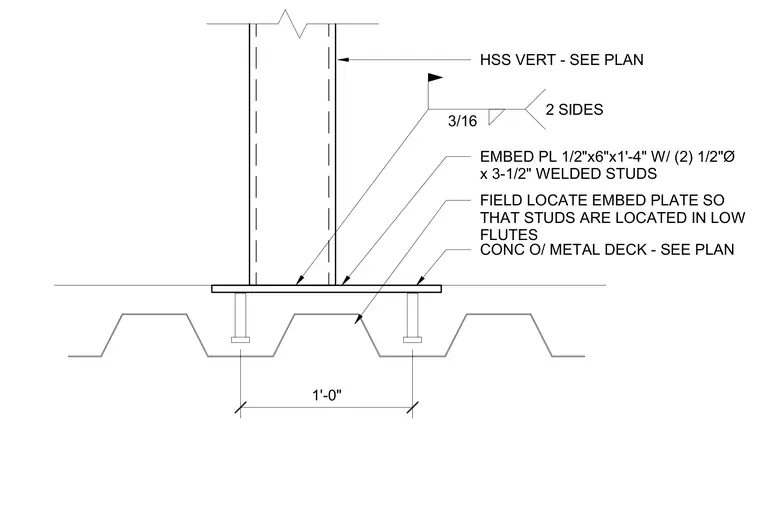

A vertical hollow structural section post connects to a base plate measuring one-half inch by six inches by one foot four inches with a three-sixteenths-inch fillet weld on two sides. The base plate anchors to concrete over a metal deck using two half-inch-diameter by three-and-a-half-inch welded studs spaced at one foot zero inches. The embed plate must be field located so that the studs are positioned in the low flutes of the metal deck.
EMBED PL 1/2"x6"x1'-4" W/ (2) 1/2"Ø x 3-1/2" WELDED STUDS FIELD LOCATE EMBED PLATE SO THAT STUDS ARE LOCATED IN LOW FLUTES 3/16 2 SIDES HSS VERT - SEE PLAN CONC O/ METAL DECK - SEE PLAN 1'-0"
