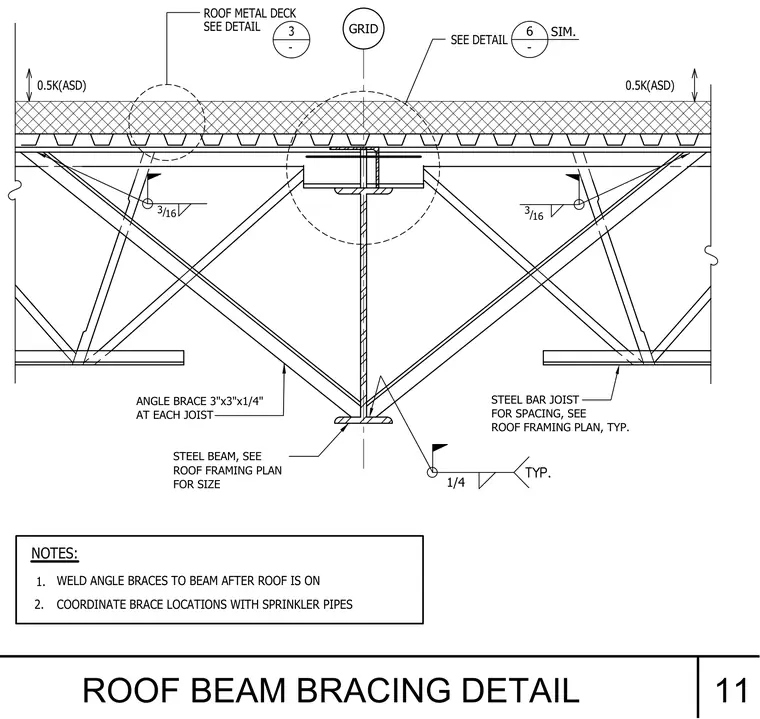

Roof beam bracing featuring a steel bar joist spaced per the roof framing plan and tied with a 3"x3"x1/4" angle brace at each joist. The angle braces are welded to the supporting steel beam with a 1/4-inch fillet weld, specified to be executed after the roof is installed. Additional welded connections with 3/16-inch fillet welds secure the bracing assembly. Brace locations must be coordinated with sprinkler pipes.
ROOF BEAM BRACING DETAIL 11 WELD ANGLE BRACES TO BEAM AFTER ROOF IS ON COORDINATE BRACE LOCATIONS WITH SPRINKLER PIPES 1. 2. NOTES: STEEL BAR JOIST FOR SPACING, SEE ROOF FRAMING PLAN, TYP. ANGLE BRACE 3"x3"x1/4" AT EACH JOIST STEEL BEAM, SEE ROOF FRAMING PLAN FOR SIZE / 3 16 1/4 6 - SEE DETAIL SIM. GRID - 3 SEE DETAIL ROOF METAL DECK 0.5K(ASD) 0.5K(ASD) / 3 16
