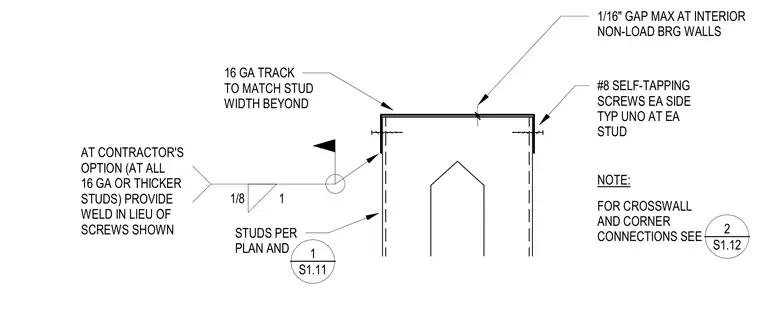

Cold-formed steel studs connect to a sixteen-gauge track sized to match the stud width beyond, maintaining a one-sixteenth-inch gap maximum at interior non-load-bearing walls. Number eight self-tapping screws attach each side typically unless otherwise noted at each stud. At the contractor's option for all sixteen-gauge or thicker studs, a one-eighth-inch fillet weld of one-inch length is provided in lieu of screws for crosswall and corner connections.
NOTE: #8 SELF-TAPPING SCREWS EA SIDE TYP UNO AT EA STUD STUDS PER PLAN AND AT CONTRACTOR'S OPTION (AT ALL 16 GA OR THICKER STUDS) PROVIDE WELD IN LIEU OF SCREWS SHOWN FOR CROSSWALL AND CORNER CONNECTIONS SEE 16 GA TRACK TO MATCH STUD WIDTH BEYOND 1/16" GAP MAX AT INTERIOR NON-LOAD BRG WALLS _____ 1 S1.11 _____ 2 S1.12 1/8 1
