A concrete masonry unit wall aligns perpendicularly beneath a steel roof deck supported by open-web roof joists or wide-flange beams. Hollow structural section members measuring six by three inches by five-sixteenths thick are spaced at eight feet on center maximum and run continuously between roof members. Angle clips measuring six by four inches by three-eighths by one foot long connect components. Channel members measuring six by fifteen-point-three are placed on each side of the concrete masonry unit bond beam. Compressible fire-rated filler fills the joint gap at the top of the wall.

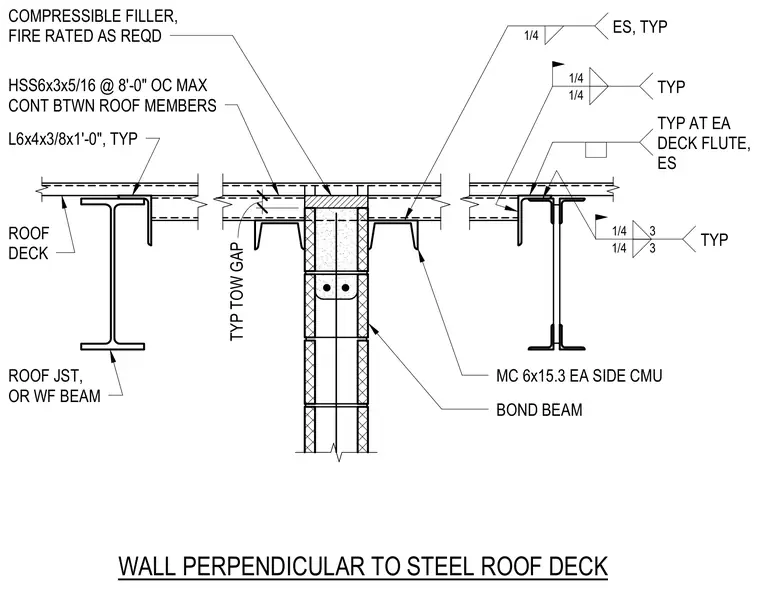

TYP 3 3 1/4 1/4 MC 6x15.3 EA SIDE CMU BOND BEAM ROOF DECK ROOF JST, OR WF BEAM COMPRESSIBLE FILLER, FIRE RATED AS REQD WALL PERPENDICULAR TO STEEL ROOF DECK L6x4x3/8x1'-0", TYP HSS6x3x5/16 @ 8'-0" OC MAX CONT BTWN ROOF MEMBERS TYP 1/4 1/4 TYP AT EA DECK FLUTE, ES 1 1/2" TYP TOW GAP ES, TYP 1/4
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
