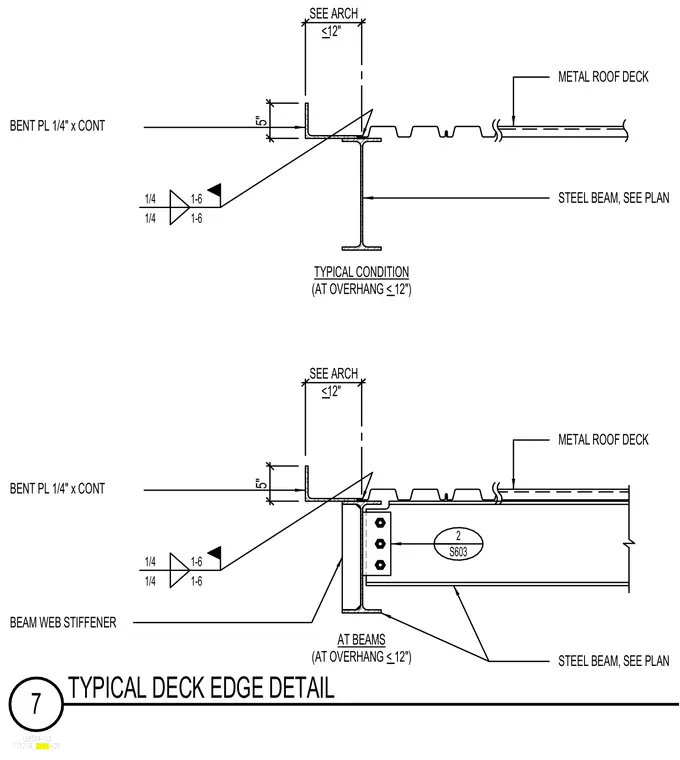

A typical metal roof deck edge condition features a continuous quarter-inch bent plate fascia at roof overhangs less than twelve inches. The continuous bent plate is welded to the supporting steel beam with quarter-inch fillet welds spaced at six inches on center. A beam web stiffener is included at perpendicular framing conditions to provide local web support. The steel beam is sized per plan and coordinates with architectural overhang dimensions.
7 TYPICAL DECK EDGE DETAIL 171219_S521-07 133504-02 2 S603 STEEL BEAM, SEE PLAN 1/4 1-6 BENT PL 1/4" x CONT STEEL BEAM, SEE PLAN BEAM WEB STIFFENER TYPICAL CONDITION AT BEAMS 1/4 1-6 1/4 1-6 1/4 1-6 (AT OVERHANG < 12") METAL ROOF DECK BENT PL 1/4" x CONT METAL ROOF DECK (AT OVERHANG < 12") SEE ARCH 5" 5" <12" SEE ARCH <12"
