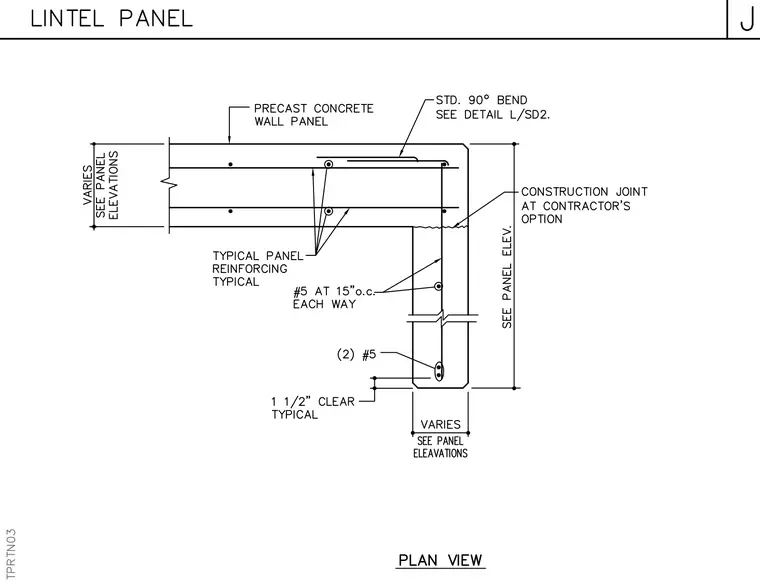

A precast concrete wall panel features a standard 90-degree corner bend with reinforcing steel configured with number five bars at fifteen inches on center each way. A construction joint is located at the contractor's option along the return leg. Two number five bars provide end reinforcement with a one and a half inch clear cover typical. Panel thickness and elevation dimensions vary per panel elevations.
