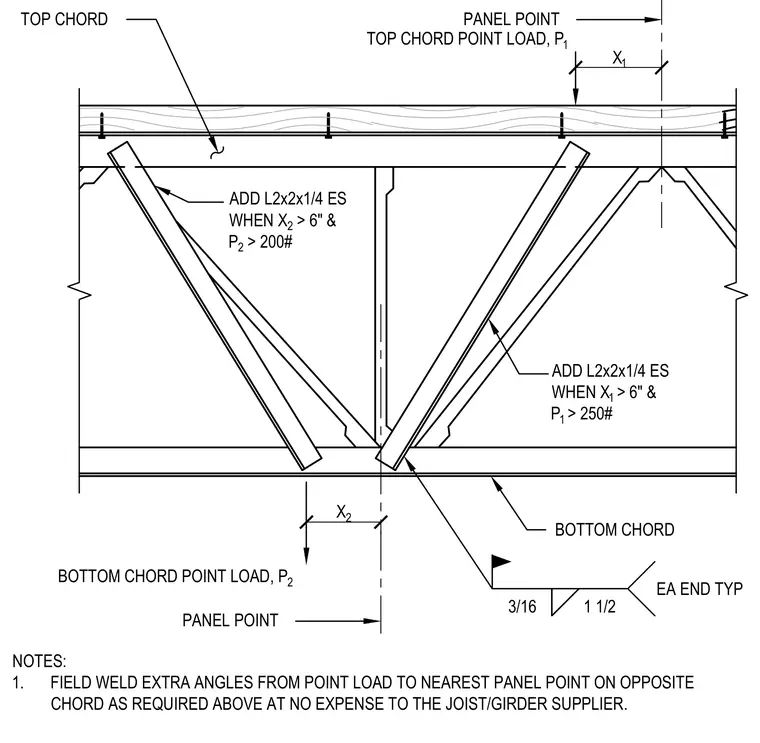

Supplemental steel angles are added to the top and bottom chords of open-web steel joists or girders when point loads exceed specific thresholds at a distance from panel points. An L2x2x1/4 angle is field welded with a three-sixteenths inch fillet weld applied one and one-half inches each end typically when the top chord point load exceeds two hundred fifty pounds at a distance greater than six inches from a panel point. A similar L2x2x1/4 angle is added when the bottom chord point load exceeds two hundred pounds at a distance greater than six inches from a panel point. Extra angles are field welded from the point load to the nearest panel point on the opposite chord as required.
NOTES: 1. FIELD WELD EXTRA ANGLES FROM POINT LOAD TO NEAREST PANEL POINT ON OPPOSITE CHORD AS REQUIRED ABOVE AT NO EXPENSE TO THE JOIST/GIRDER SUPPLIER. PANEL POINT BOTTOM CHORD POINT LOAD, P 2 TOP CHORD POINT LOAD, P 1 TOP CHORD BOTTOM CHORD X 1 ADD L2x2x1/4 ES WHEN X 1 > 6" & P 1 > 250# ADD L2x2x1/4 ES WHEN X 2 > 6" & P 2 > 200# PANEL POINT X 2 3/16 1 1/2 EA END TYP
