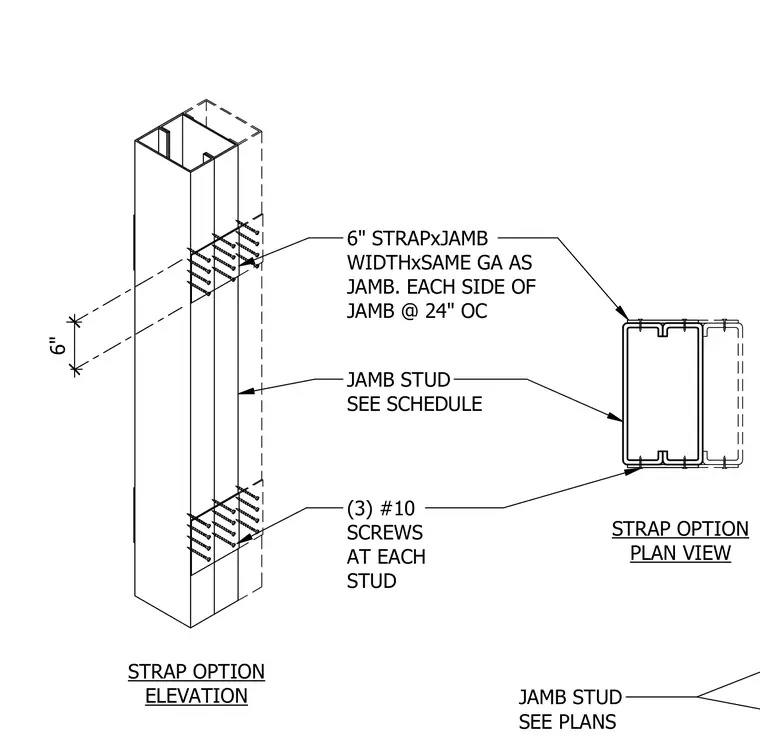

Cold-formed steel jamb studs are reinforced with a six-inch strap matching the jamb width and gauge on each side at twenty-four inches on center. Three number ten screws fasten each stud at the strap locations. The assembly is detailed in both isometric elevation and plan views.
JAMB STUD SEE SCHEDULE 6" STRAPxJAMB WIDTHxSAME GA AS JAMB. EACH SIDE OF JAMB @ 24" OC (3) #10 SCREWS AT EACH STUD STRAP OPTION PLAN VIEW STRAP OPTION ELEVATION JAMB STUD SEE PLANS 6"
