An L6x6x3/8 inch angle with a one and a half inch slotted hole on each side connects to the hollow structural section post using a seven-eighths inch diameter through-bolt with damaged threads to prevent loosening. A one-quarter inch fillet weld applied to three sides typically secures the angle assembly. The connection ties into the adjacent slab edge and a beam per plan, aligning with a shaft wall per architectural drawings.

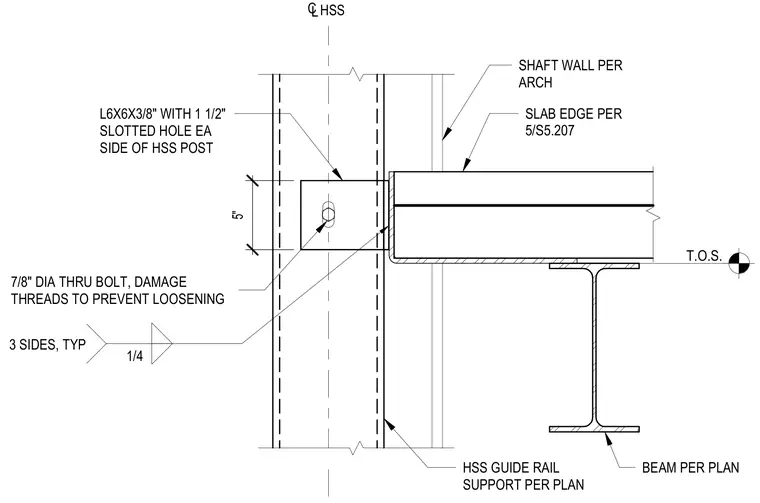

1/4 3 SIDES, TYP T.O.S. HSS L C SHAFT WALL PER ARCH HSS GUIDE RAIL SUPPORT PER PLAN L6X6X3/8" WITH 1 1/2" SLOTTED HOLE EA SIDE OF HSS POST 7/8" DIA THRU BOLT, DAMAGE THREADS TO PREVENT LOOSENING SLAB EDGE PER 5" 5/S5.207 BEAM PER PLAN
