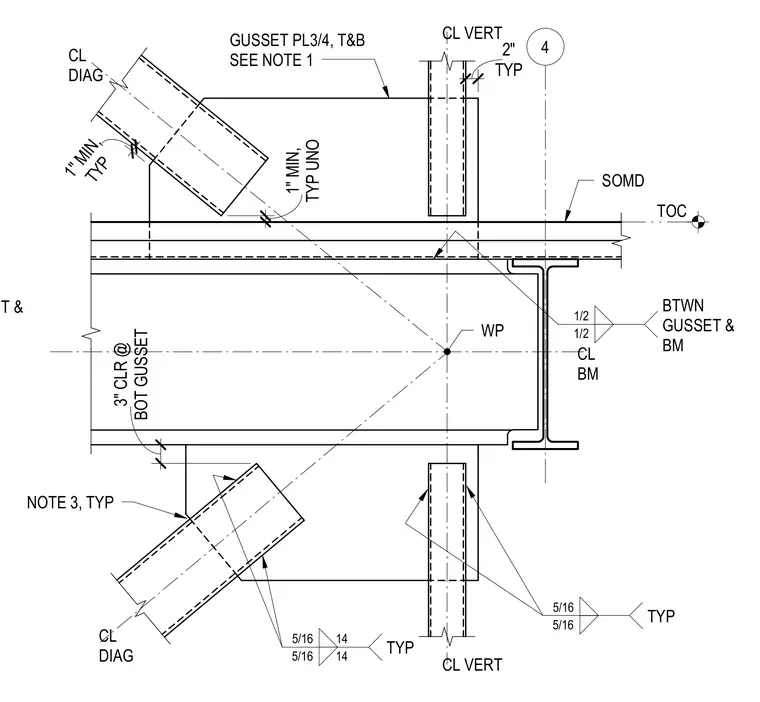

A braced frame bottom gusset plate connection occurs at a beam intersection. Three-quarter-inch top and bottom gusset plates connect to the structural steel beam using five-sixteenth-inch fillet welds. Diagonal and vertical members intersect at a common work point with specified clearances, including a one-inch minimum clearance typical and three-inch clearance at the bottom gusset. Welds between the gusset plates and the beam are specified with five-sixteenth-inch sizing typical unless noted otherwise.
GUSSET & 4 TOC WP SOMD CL DIAG CL VERT CL VERT NOTE 3, TYP GUSSET PL3/4, T&B SEE NOTE 1 TYP 14 14 5/16 5/16 BTWN GUSSET & BM 1/2 1/2 TYP 5/16 5/16 CL DIAG TYP UNO 1" MIN, BOT GUSSET 3" CLR @ TYP 2" CL BM TYP 1" MIN,
