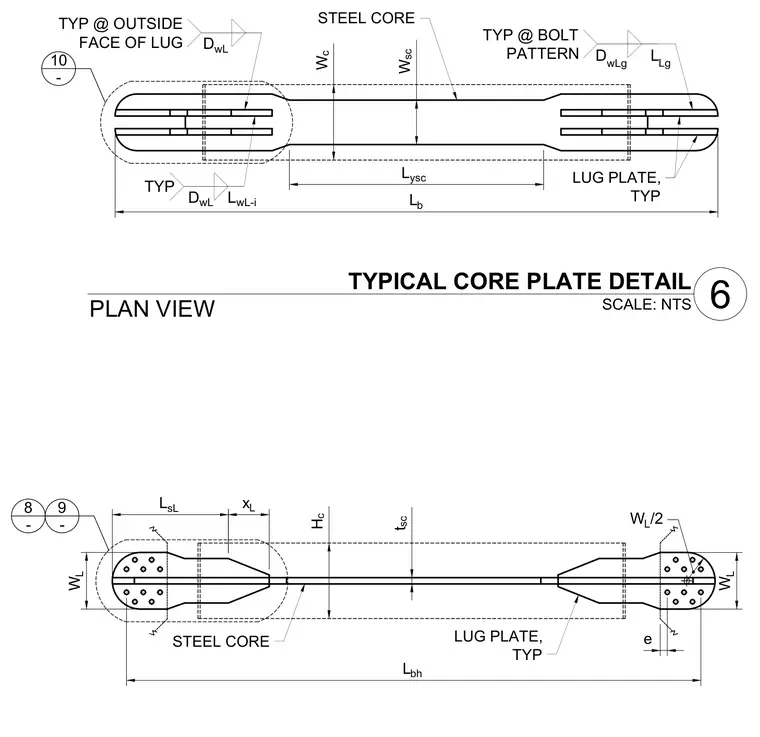

A steel core plate assembly features welded lug plates at both ends with specific bolt patterns. The main steel core transitions in width and thickness, flanked by typical lug plates attached along the outside face. Weld and dimension symbols define the configuration across plan views.
L b L ysc W c W sc D wL 10 - D wL L wL-i L bh L sL x L H c t sc e W L 9 - STEEL CORE LUG PLATE, TYP W L /2 W L TYP D wLg L Lg TYP @ BOLT PATTERN STEEL CORE LUG PLATE, TYP TYP @ OUTSIDE FACE OF LUG 6 TYPICAL CORE PLATE DETAIL SCALE: NTS PLAN VIEW 8 -
