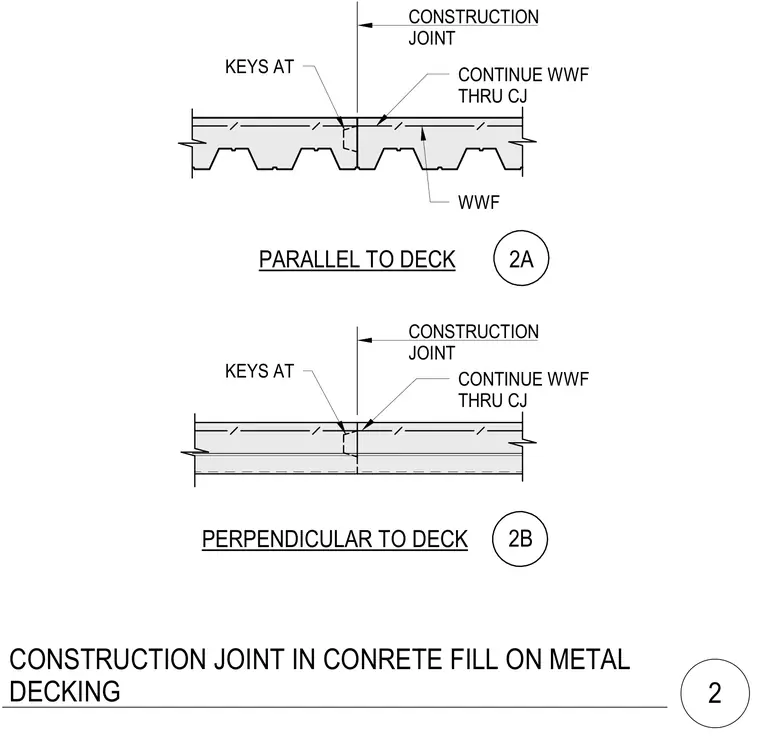

A construction joint in concrete fill placed over metal decking features continuous welded wire fabric reinforcement running straight through the joint. Shear keys are provided at the joint interface for load transfer. Two orientations are detailed showing the joint running parallel and perpendicular to the metal deck flutes.
PERPENDICULAR TO DECK PARALLEL TO DECK KEYS AT CONSTRUCTION JOINT CONTINUE WWF THRU CJ . CONSTRUCTION JOINT CONTINUE WWF THRU CJ KEYS AT WWF . 2A 2B CONSTRUCTION JOINT IN CONRETE FILL ON METAL DECKING 2
