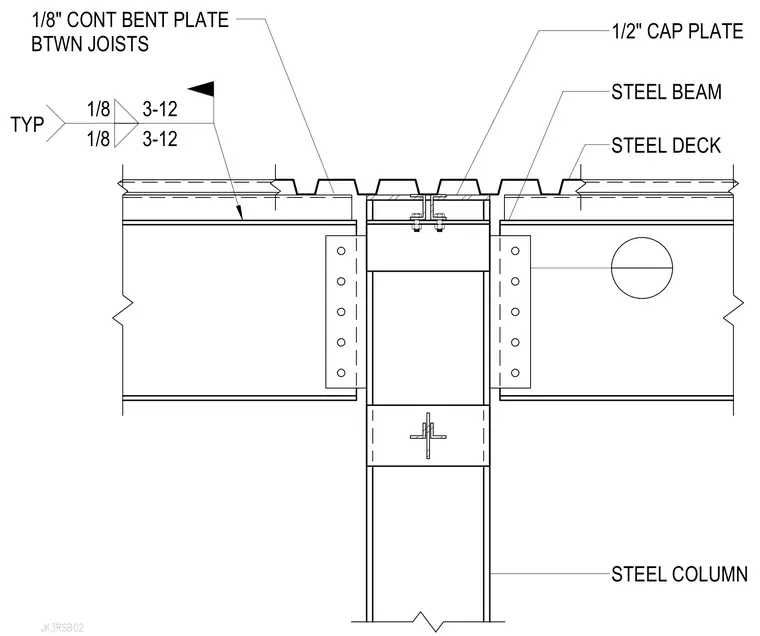

Two steel beams frame into opposite sides of a steel column, bearing on connection plates welded to the column web and flanges. A one-half inch cap plate sits atop the steel column with bolted connections securing the upper elements. A one-eighth inch continuous bent plate runs between joists above the beam lines to support the profiled steel deck spanning across the assembly.
JK3RSB02 1/8" CONT BENT PLATE BTWN JOISTS STEEL COLUMN 1/2" CAP PLATE STEEL DECK STEEL BEAM 1/8 3-12 1/8 3-12 TYP
