Structural · S-9Z8GK

Typical Concrete Wall On Concrete Footing

Materials

Concrete

Elements

Columns Walls Floors / Slabs Foundations / Footings Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

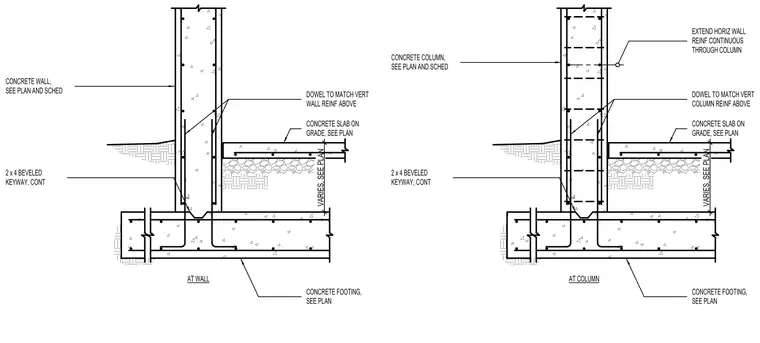

A concrete wall or concrete column bears on a concrete footing sized per plan, tied together with continuous dowels matching the vertical reinforcement above. A continuous two-by-four beveled keyway forms the joint between the footing and the wall or column. Horizontal wall reinforcement extends continuously through the concrete column. A concrete slab on grade ties into the wall or column assembly at a height that varies per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
