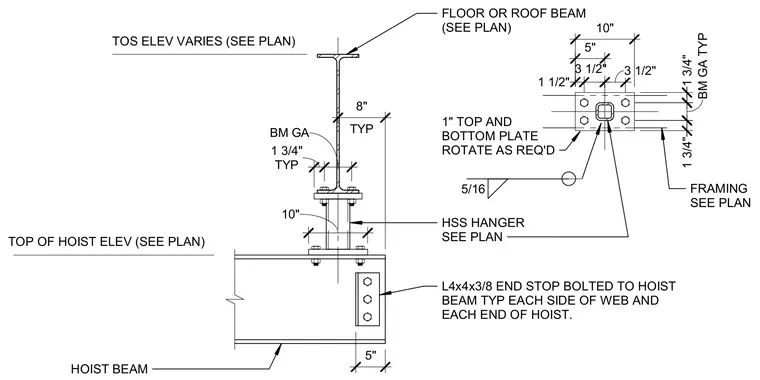

A hollow structural section hanger connects a structural hoist beam to an overhead floor or roof beam using one-inch top and bottom plates rotated as required. An L4x4x3/8 angle end stop is bolted to the hoist beam web on each side and at each end. Fillet welds of five-sixteenths inch secure the assembly components per plan.
TYP 8" 5" FLOOR OR ROOF BEAM (SEE PLAN) TOS ELEV VARIES (SEE PLAN) HOIST BEAM L4x4x3/8 END STOP BOLTED TO HOIST BEAM TYP EACH SIDE OF WEB AND EACH END OF HOIST. TOP OF HOIST ELEV (SEE PLAN) 1 3/4" 3 1/2" 1 1/2" 3 1/2" 5" 10" 1 3/4" 5/16 1" TOP AND BOTTOM PLATE ROTATE AS REQ'D FRAMING SEE PLAN BM GA TYP BM GA TYP 1 3/4" 10" HSS HANGER SEE PLAN
