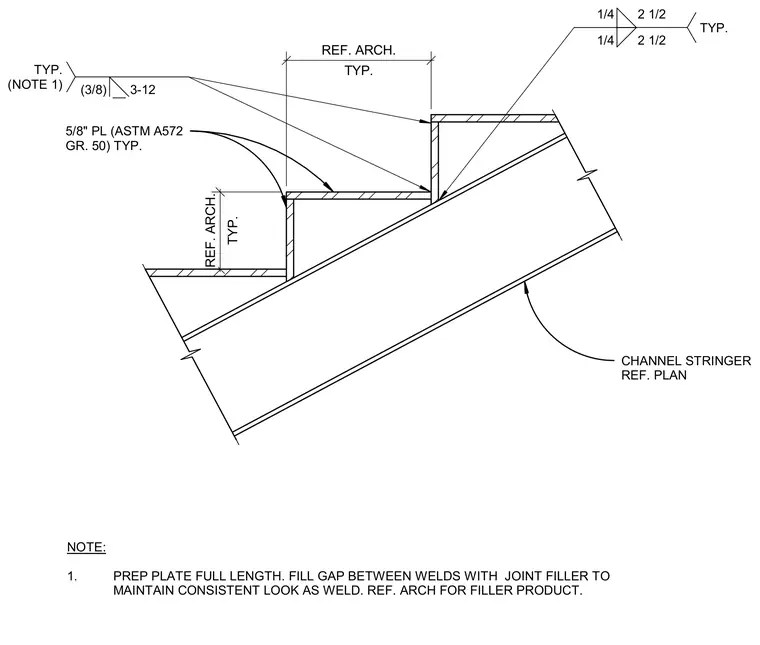

Five-eighths inch ASTM A572 Grade 50 steel plates form the tread hold-back assembly supported by a channel stringer. Intermittent fillet welds secure the plates with a three-eighths inch size on a twelve-inch pitch. Gaps between welds are filled with joint filler per architectural specifications to maintain a consistent aesthetic appearance.
TYP. REF. ARCH. TYP. REF. ARCH. CHANNEL STRINGER REF. PLAN NOTE: 1. PREP PLATE FULL LENGTH. FILL GAP BETWEEN WELDS WITH JOINT FILLER TO MAINTAIN CONSISTENT LOOK AS WELD. REF. ARCH FOR FILLER PRODUCT. 5/8" PL (ASTM A572 GR. 50) TYP. 1/4 2 1/2 1/4 2 1/2 TYP. (3/8) 3-12 TYP. (NOTE 1)
