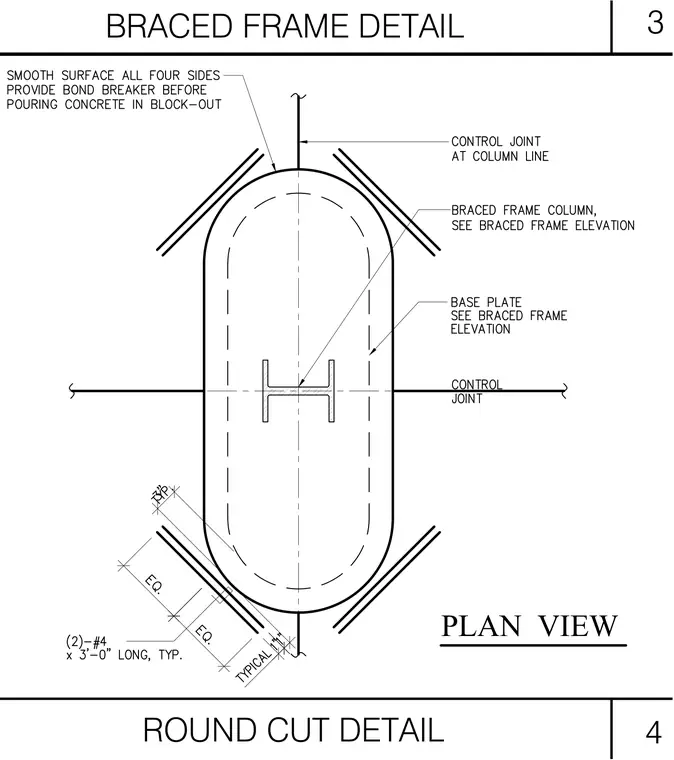

This plan detail shows a braced frame column and base plate set within a rounded block-out. A bond breaker is specified along the smooth surfaces of all four sides prior to pouring concrete into the block-out. Control joints intersect at the column line. Reinforcement consists of two number four reinforcing bars measuring three feet zero inches long typical. Spacing and dimensions are indicated around the perimeter.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
