Structural · S-9YTBV

Steel Beam Connection at Concrete Tilt-Up Panel

Materials

Elements

Beams Decks Connections / Plates Roof / Floor Openings

About this detail

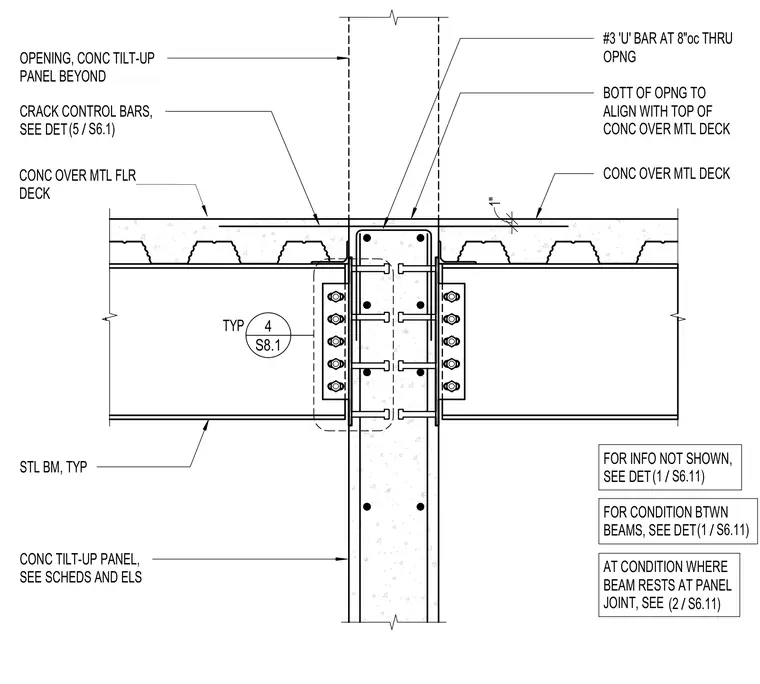

Steel floor beams frame into a concrete tilt-up wall panel with a concrete-topped metal floor deck on either side. The bottom of the wall opening aligns with the top of the concrete over metal deck. Crack control bars are placed within the topping slab, and number three U-bars at eight inches on center run through the opening where the beam rests at the panel joint.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
