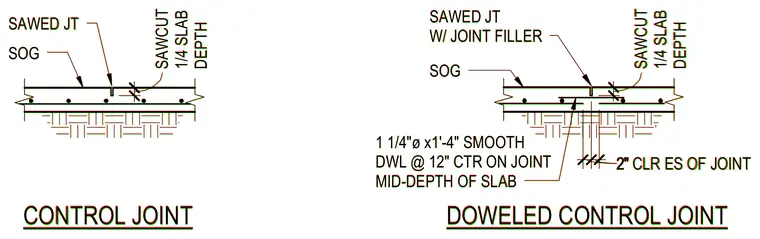

Control joints in a concrete slab on grade are formed with a sawcut extending one-quarter of the slab depth. The doweled control joint variation incorporates one and one-quarter inch diameter by one-foot four-inch smooth dowels spaced at twelve inches on center across the joint. These smooth dowels are positioned at the mid-depth of the slab with two inches of clearance to the edges of the joint. Joint filler is applied within the sawcut for the doweled condition.
SOG SAWED JT CONTROL JOINT 2" SAWCUT 1/4 SLAB DEPTH SOG SAWED JT W/ JOINT FILLER DOWELED CONTROL JOINT 2" SAWCUT 1/4 SLAB DEPTH 2"2" CLR ES OF JOINT 1 1/4"ø x1'-4" SMOOTH DWL @ 12" CTR ON JOINT MID-DEPTH OF SLAB SOG SAWED JT CONTROL JOINT 2" SAWCUT 1/4 SLAB DEPTH SOG SAWED JT W/ JOINT FILLER DOWELED CONTROL JOINT 2" SAWCUT 1/4 SLAB DEPTH 2"2" CLR ES OF JOINT 1 1/4"ø x1'-4" SMOOTH DWL @ 12" CTR ON JOINT MID-DEPTH OF SLAB
