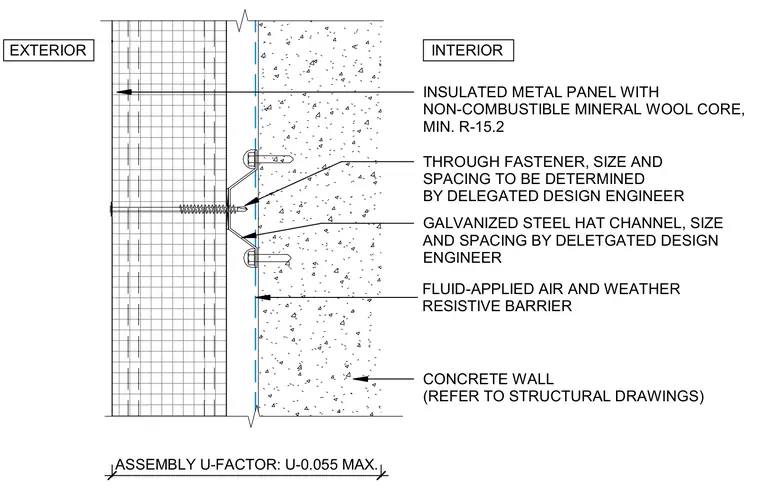

An insulated metal panel with a non-combustible mineral wool core providing a minimum R-15.2 thermal performance attaches to the exterior of a concrete wall. A fluid-applied air and weather-resistive barrier coats the exterior face of the concrete substrate. Galvanized steel hat channels secure to the concrete via through fasteners, with sizing and spacing delegated to the design engineer. Exterior insulated metal panels fasten through the hat channels with fasteners sized per delegated design.
INSULATED METAL PANEL WITH NON-COMBUSTIBLE MINERAL WOOL CORE, MIN. R-15.2 CONCRETE WALL (REFER TO STRUCTURAL DRAWINGS) GALVANIZED STEEL HAT CHANNEL, SIZE AND SPACING BY DELETGATED DESIGN ENGINEER INTERIOR EXTERIOR FLUID-APPLIED AIR AND WEATHER RESISTIVE BARRIER THROUGH FASTENER, SIZE AND SPACING TO BE DETERMINED BY DELEGATED DESIGN ENGINEER ASSEMBLY U-FACTOR: U-0.055 MAX.
