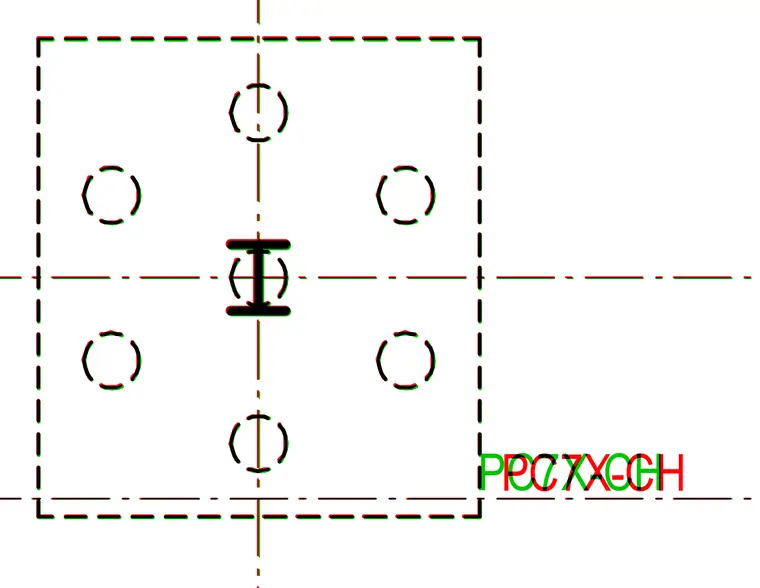

A structural column base plate connection is detailed with anchor bolts positioned symmetrically around a central steel column section. The dashed outlines indicate the base plate perimeter and anchor bolt locations relative to the column centerlines. Centerlines intersect at the midpoint of the steel section to establish alignment.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
