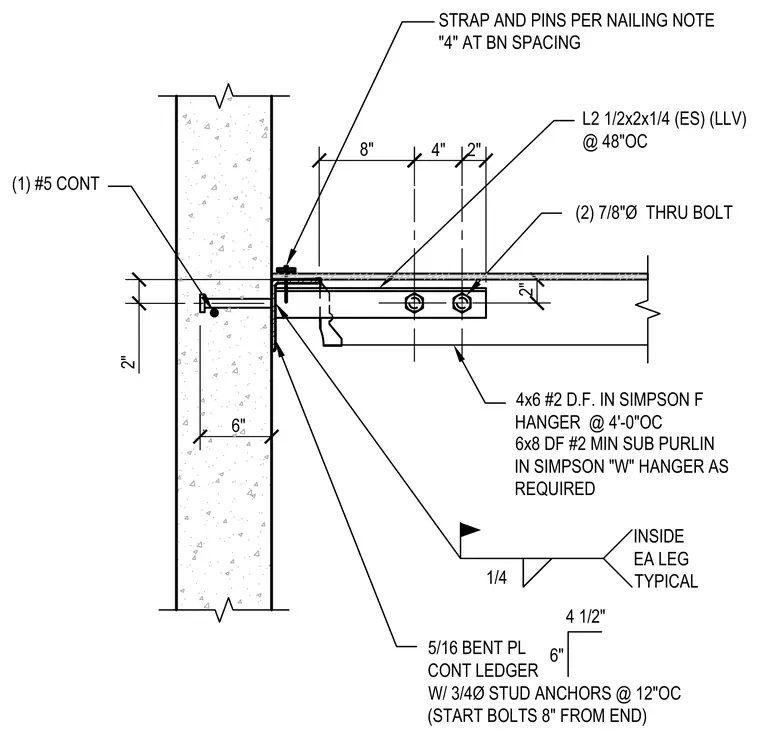

A continuous five-sixteenth-inch bent plate ledger anchors to the structural wall using three-quarter-inch diameter stud anchors spaced at twelve inches on center with start bolts eight inches from the end, reinforced by one continuous number five rebar. Two seven-eighth-inch diameter through bolts secure the timber framing inside each leg of a two-and-a-half by two by one-quarter-inch angle spaced at forty-eight inches on center. A four-by-six number two Douglas Fir timber is supported in a Simpson F hanger at four feet on center, with a six-by-eight Douglas Fir number two minimum sub-purlin supported in a Simpson W hanger as required. A strap with pins is fastened per the nailing note at four inches at beam purlin spacing.
L2 1/2x2x1/4 (ES) (LLV) @ 48"OC 4x6 #2 D.F. IN SIMPSON F HANGER @ 4'-0"OC 5/16 BENT PL CONT LEDGER W/ 3/4Ø STUD ANCHORS @ 12"OC (START BOLTS 8" FROM END) (1) #5 CONT 2" 8" 6" (2) 7/8"Ø THRU BOLT 2" 2" 1/4 INSIDE EA LEG TYPICAL 4" STRAP AND PINS PER NAILING NOTE "4" AT BN SPACING 6x8 DF #2 MIN SUB PURLIN IN SIMPSON "W" HANGER AS REQUIRED 4 1/2" 6"
