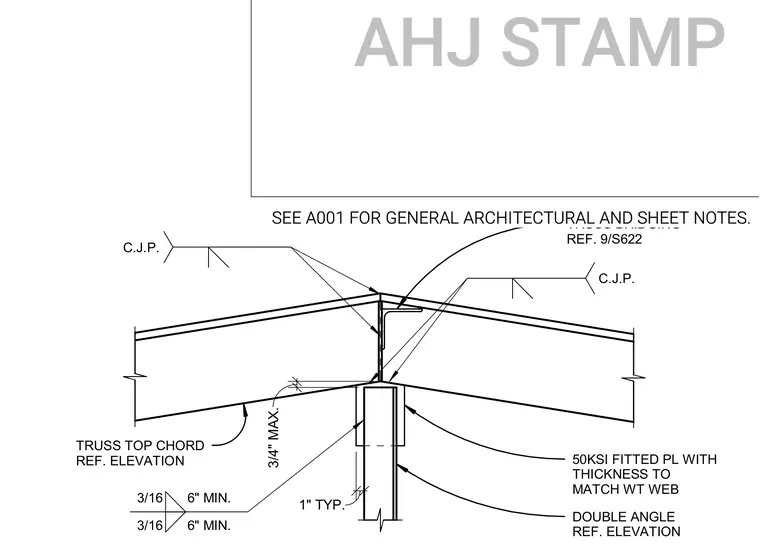

A steel truss top chord connection is supported by a double angle and 50 KSI fitted plate with a thickness matching the WT web. The assembly is secured using complete joint penetration welds with specified minimum dimensions. Truss bridging is referenced at detail 9 on sheet S622, and a maximum gap of 3/4 in. is maintained.
1" TYP. 3/4" MAX. TRUSS TOP CHORD REF. ELEVATION 3/16 6" MIN. 3/16 6" MIN. 50KSI FITTED PL WITH THICKNESS TO MATCH WT WEB DOUBLE ANGLE REF. ELEVATION C.J.P. C.J.P. TRUSS BRIDGING REF. 9/S622 SEE A001 FOR GENERAL ARCHITECTURAL AND SHEET NOTES. AHJ STAMP
