Structural · S-9Y9X2

Elevator Rail Column Connection

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Decks Bracing Connections / Plates

Connections

Base Plate / Anchorage Bracing Connection Bolted Connection

About this detail

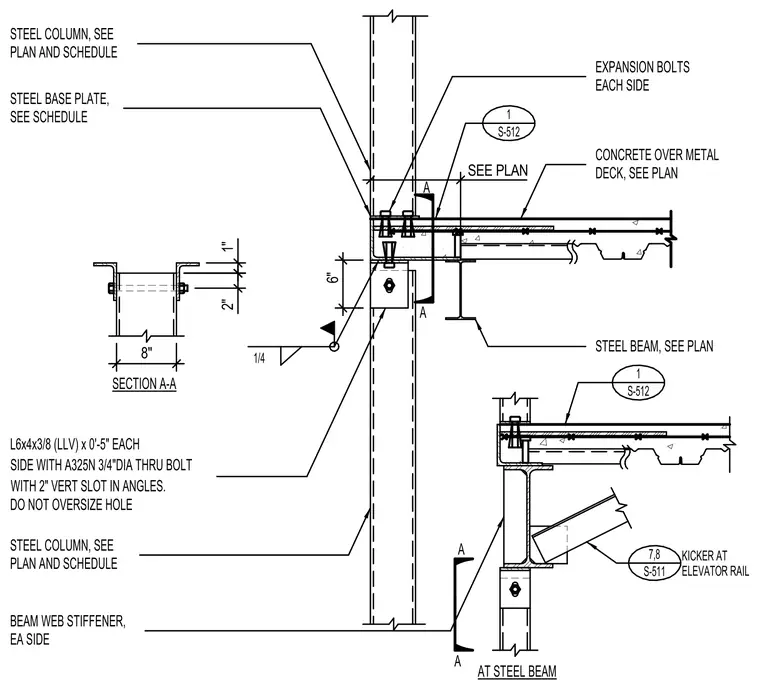

A steel column supports a concrete over metal deck floor system via a steel beam and a steel base plate sized per plan. Expansion bolts secure the base plate on each side. A kicker brace connects to the elevator rail using L6x4x3/8 angles, five inches long, attached with three-quarter-inch diameter A325N through bolts featuring two-inch vertical slots in the angles. Beam web stiffeners are provided on each side, welded with a quarter-inch fillet weld.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
