Structural · S-9Y82R

Bent Plate or Angle Horizontal Leg for Steel Deck

Materials

Elements

About this detail

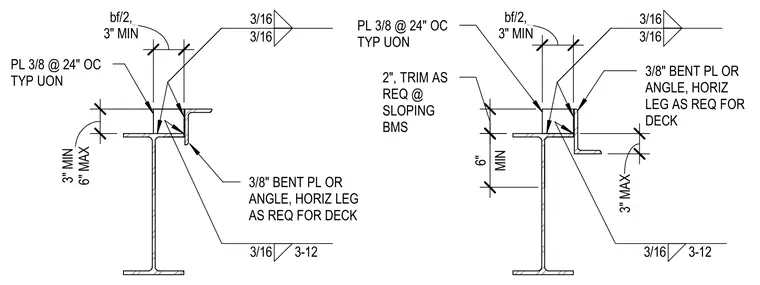

A three-eighths-inch bent plate or structural angle features a horizontal leg sized as required for the metal deck bearing condition. Three-eighths-inch plates spaced at twenty-four inches on center are provided typically unless noted otherwise. Fillet welds of three-sixteenths-inch size secure the steel assembly. Clearances and dimensions include a minimum of three inches for half the flange width, a range of three inches minimum to six inches maximum, and trimming as required at sloping beams.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
