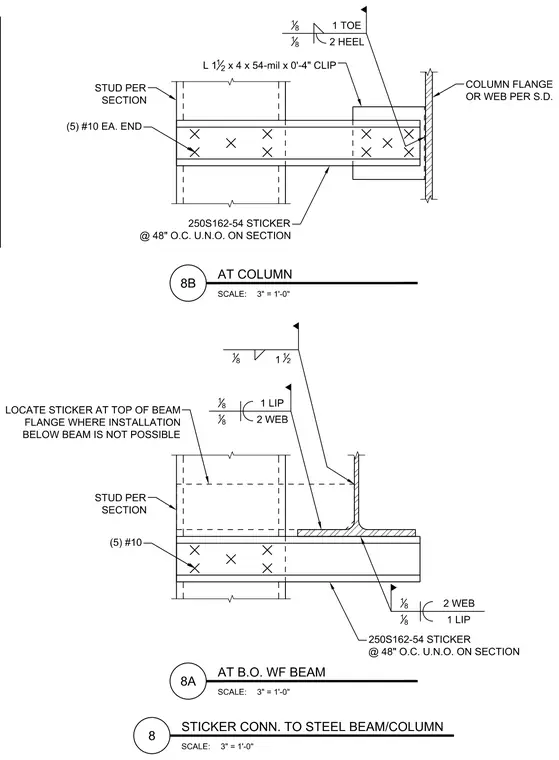

The cold-formed steel sticker connection details cold-formed steel framing members attached to structural steel supports using angle clips. At the column connection, a 1-1/2 inch by 4 inch by 54-mil clip is welded to the column flange or web with a 1/8 inch fillet weld on both the toe and heel. A 250S162-54 sticker member spaced at 48 inches on center connects to the clip using five number 10 screws at each end. At the beam connection, the sticker is positioned either below or at the top of the wide-flange beam flange using an angle clip welded with 1/8 inch fillet welds.
