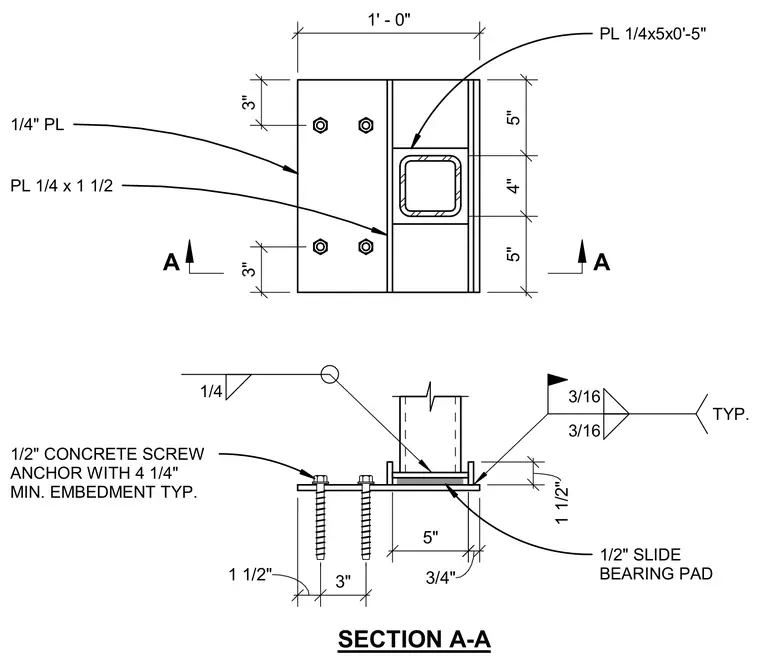

A structural steel stair post is welded to a base plate using three-sixteenth-inch fillet welds on both sides, bearing on a one-half-inch slide bearing pad over a quarter-inch base plate. The assembly is anchored to concrete using one-half-inch concrete screw anchors with four and one-quarter inches of minimum embedment, typically spaced with three-inch and one-and-a-half-inch edge dimensions. Additional quarter-inch plates measuring one and one-half inches wide provide stiffening and support around the post base.
1/4 1' - 0" 3" 3" 1 1/2" 1 1/2" 3" 3/16 3/16 TYP. 3/4" 5" 1/2" CONCRETE SCREW ANCHOR WITH 4 1/4" MIN. EMBEDMENT TYP. 1/2" SLIDE BEARING PAD PL 1/4x5x0'-5" PL 1/4 x 1 1/2 5" 4" 5" 1/4" PL A SECTION A-A A
