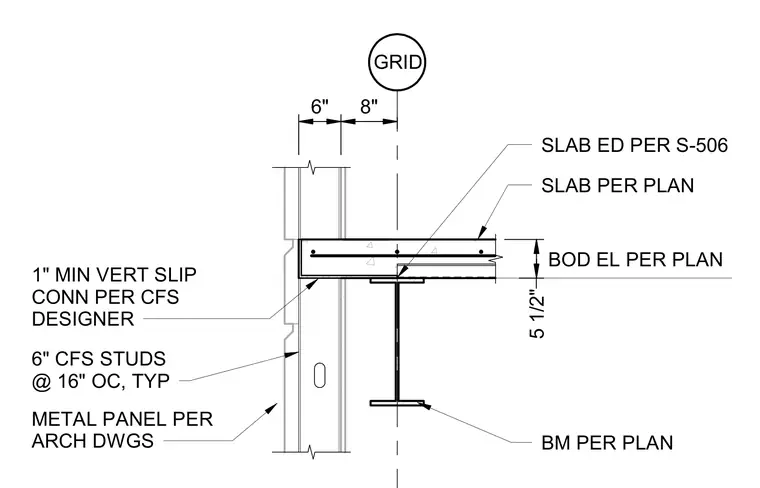

Six-inch cold-formed steel studs spaced at sixteen inches on center support exterior metal panels detailed per architectural drawings. A one-inch minimum vertical slip connection is provided per the cold-formed steel designer. The slab edge aligns with the steel beam flange per plan and structural sheet S-506, maintaining a bottom-of-deck elevation per plan.
BOD EL PER PLAN 116' - 2 1/2" 8" 6" BM PER PLAN SLAB PER PLAN METAL PANEL PER ARCH DWGS 1" MIN VERT SLIP CONN PER CFS DESIGNER 6" CFS STUDS @ 16" OC, TYP 5 1/2" GRID SLAB ED PER S-506
