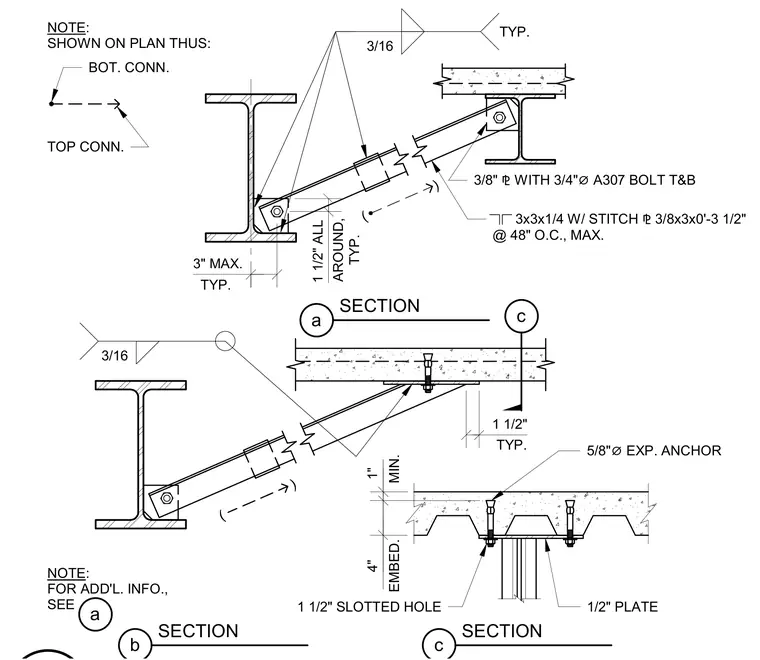

Beam bracing connections utilize structural steel angle struts anchored to beams and concrete deck assemblies. The brace consists of a 3x3x1/4 angle with stitch plates measuring 3/8 by 3 inches by zero feet three and a half inches spaced at forty-eight inches on center maximum, connected with three-quarter-inch diameter A307 bolts top and bottom. A one-half-inch plate is anchored to the concrete deck using five-eighths-inch diameter expansion anchors with a four-inch embedment minimum and one-inch minimum clearance. Welds are specified as three-sixteenth-inch fillet welds placed all around. Slotted holes measuring one and a half inches accommodate differential movement at connection points.
NOTE: SHOWN ON PLAN THUS: TOP CONN. SECTION a 1 1/2" SLOTTED HOLE 1/2" PLATE 5/8" ⌀ EXP. ANCHOR SECTION c SECTION b NOTE: FOR ADD'L. INFO., SEE a BOT. CONN. c 4" 1" EMBED. MIN. AROUND, TYP. TYP. 3/16 TYP. ( ) 3/8" ⅊ WITH 3/4" ⌀ A307 BOLT T&B 3x3x1/4 W/ STITCH ⅊ 3/8x3x0'-3 1/2" @ 48" O.C., MAX. 1 1/2" TYP. 3/16 ( ) 3" MAX. 1 1/2" ALL
