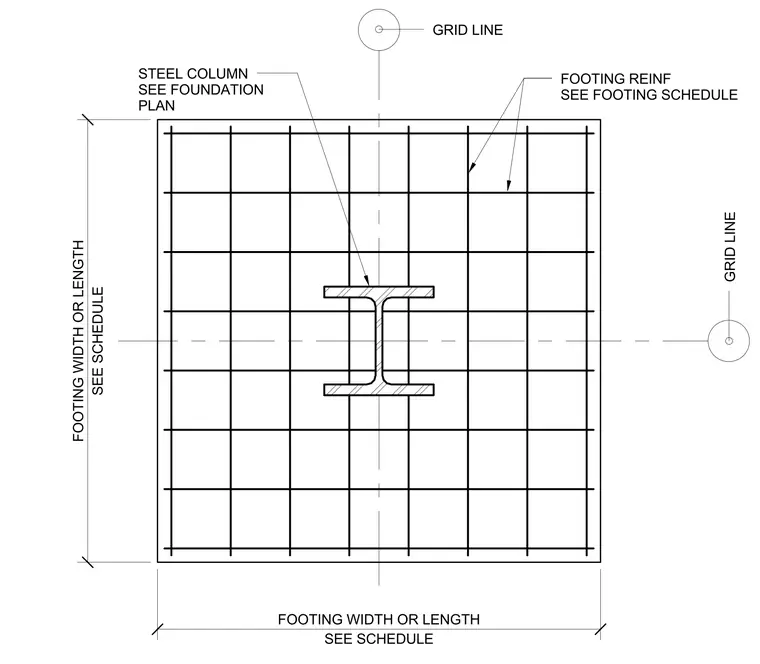

This typical interior column footing plan shows a structural steel column centered on a concrete footing aligned with grid lines. The footing reinforcement layout is coordinated per the footing schedule, with sizing determined by the foundation plan and schedule.
GRID LINE GRID LINE FOOTING REINF SEE FOOTING SCHEDULE STEEL COLUMN SEE FOUNDATION PLAN SEE SCHEDULE FOOTING WIDTH OR LENGTH SEE SCHEDULE FOOTING WIDTH OR LENGTH
