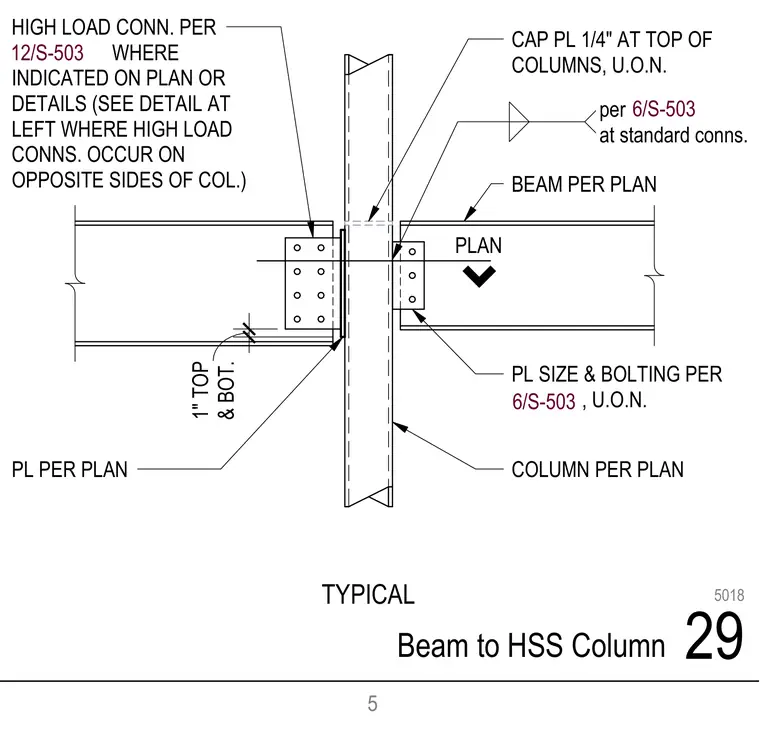

Steel framing detail showing structural steel beams connecting to an HSS column per plan with standard plate sizes and bolting governed by detail 6/S-503 unless noted otherwise. A one-quarter-inch cap plate is provided at the top of the column. High load connections are specified per detail 12/S-503 where indicated on plans or details.
TYPICAL PL SIZE & BOLTING PER , U.O.N. COLUMN PER PLAN BEAM PER PLAN CAP PL 1/4" AT TOP OF COLUMNS, U.O.N. per at standard conns. HIGH LOAD CONN. PER WHERE INDICATED ON PLAN OR DETAILS (SEE DETAIL AT LEFT WHERE HIGH LOAD CONNS. OCCUR ON OPPOSITE SIDES OF COL.) PL PER PLAN PLAN & BOT. 1" TOP 6/S-503 6/S-503 12/S-503 5 29 Beam to HSS Column 5018
