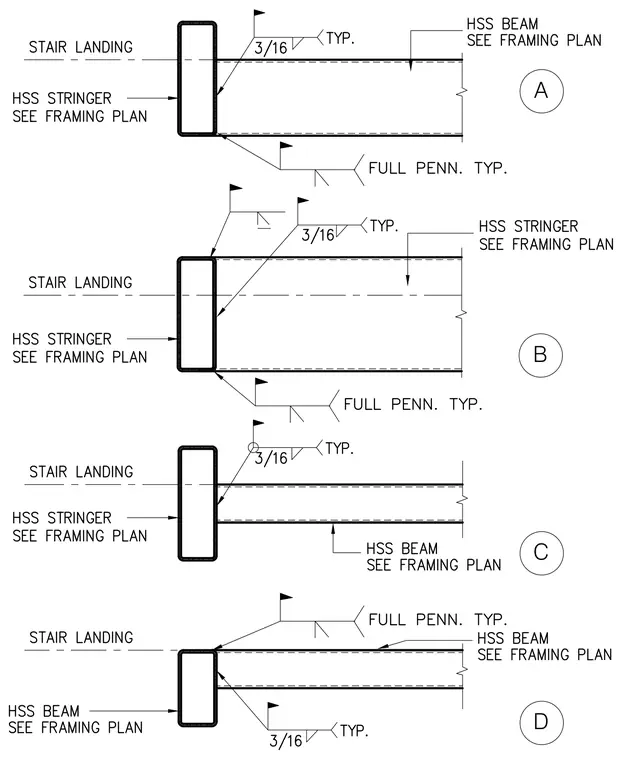

Four connection conditions show hollow structural section stair stringers and beams framing into stair landings with welded joints. Each condition details the alignment of the stair landing elevation relative to the structural members sized per the framing plan. Welded connections include three-sixteenths inch fillet welds typically and full penetration welds as noted. Field weld symbols indicate standard field weld requirements with flag markers at the joint interfaces.
