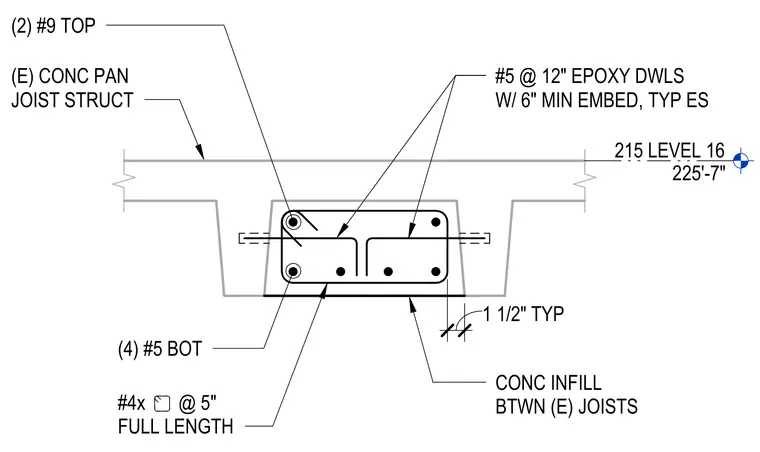

This structural detail shows concrete infill placed between existing concrete pan joists at Level 16, elevation 225'-7". The infill section is reinforced with two number nine top bars and four number five bottom bars, tied with number four closed stirrups spaced at five inches on center full length. Number five epoxy dowels at twelve inches on center with six-inch minimum embedment anchor the infill into each side of the existing concrete joist. A one-and-a-half-inch typical dimension indicates the edge clearance or recess.
215 LEVEL 16 225'-7" #5 @ 12" EPOXY DWLS W/ 6" MIN EMBED, TYP ES (E) CONC PAN JOIST STRUCT CONC INFILL BTWN (E) JOISTS 1 1/2" TYP (2) #9 TOP (4) #5 BOT #4x @ 5" FULL LENGTH
