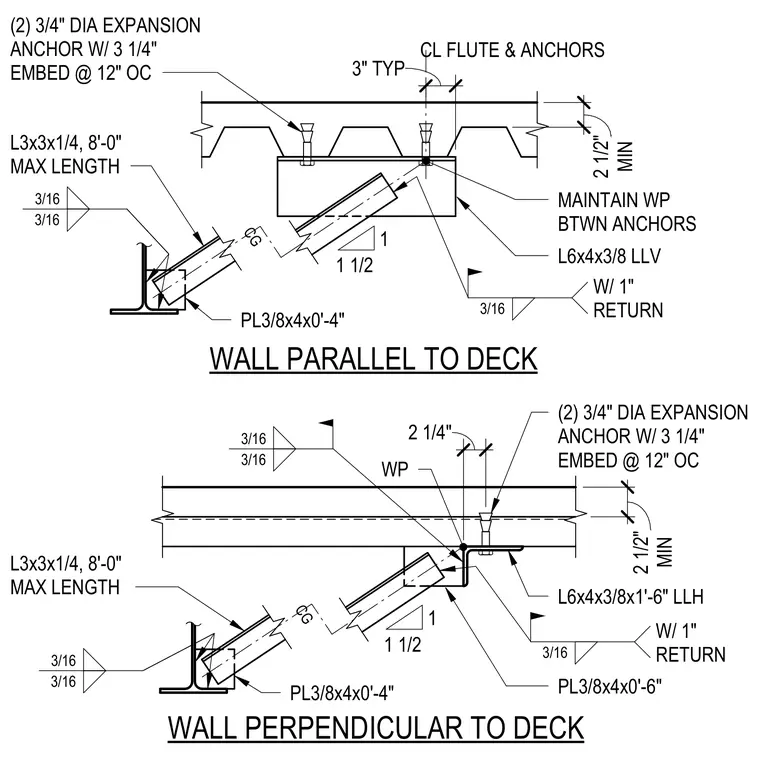

Structural wall bracing connections are oriented both parallel and perpendicular to metal deck construction. Bracing members utilize L3x3x1/4 angles with an eight-foot maximum length welded to PL3/8x4x0'-4 plates and intersecting structural supports. The parallel detail anchors an L6x4x3/8 LLV angle directly into the deck flutes using two three-quarter-inch diameter expansion anchors with three-and-a-quarter-inch embedment spaced at twelve inches on center. The perpendicular detail employs an L6x4x3/8x1'-6 LLH angle secured similarly with expansion anchors and gusset plates. All connections feature three-sixteenth-inch fillet welds with one-inch returns as indicated.
3" TYP W/ 1" RETURN 3/16 L3x3x1/4, 8'-0" MAX LENGTH L6x4x3/8 LLV WALL PARALLEL TO DECK 2 1/4" (2) 3/4" DIA EXPANSION ANCHOR W/ 3 1/4" EMBED @ 12" OC L6x4x3/8x1'-6" LLH L3x3x1/4, 8'-0" MAX LENGTH PL3/8x4x0'-6" 3/16 3/16 WALL PERPENDICULAR TO DECK WP 1 1/2 CL FLUTE & ANCHORS MAINTAIN WP BTWN ANCHORS 1 3/16 3/16 PL3/8x4x0'-4" 3/16 3/16 PL3/8x4x0'-4" 1 1/2 1 CG CG 3" 2 1/2" MIN 2 1/2" 2 1/2" MIN (2) 3/4" DIA EXPANSION ANCHOR W/ 3 1/4" EMBED @ 12" OC W/ 1" RETURN 3/16
