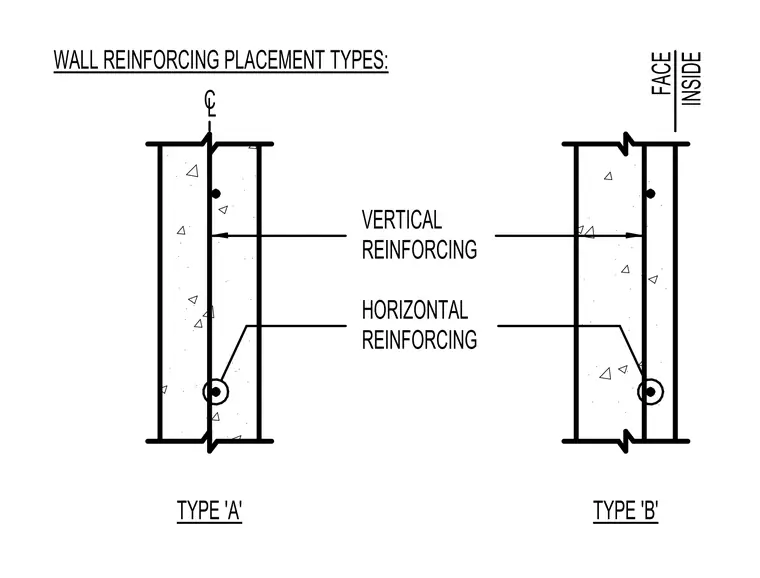

Concrete wall reinforcing placement types indicate the relative positioning of vertical and horizontal reinforcing steel within the concrete cross section. Type A and Type B details designate specific face and inside reinforcing layouts for structural concrete walls. Horizontal reinforcing bars are detailed with circular profile indicators while vertical reinforcing bars are positioned relative to the wall centerline and faces.
L C TYPE 'B' VERTICAL REINFORCING HORIZONTAL TYPE 'A' REINFORCING WALL REINFORCING PLACEMENT TYPES: INSIDE FACE
