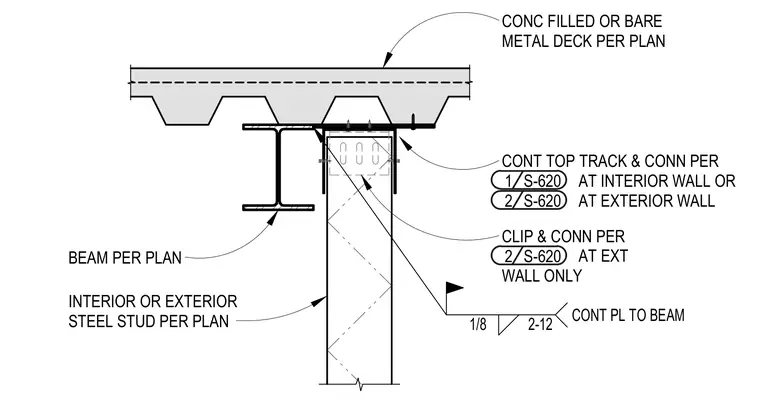

An interior or exterior steel stud wall terminates below a concrete-filled or bare metal deck supported by a structural steel beam. A continuous top track connects to the deck above, with connections specified per interior or exterior wall conditions. A continuous plate welded to the beam with a 1/8-inch fillet weld at 12 inches on center provides lateral support. An additional clip angle connects the assembly at exterior walls only.
CONC FILLED OR BARE METAL DECK PER PLAN CONT TOP TRACK & CONN PER AT INTERIOR WALL OR AT EXTERIOR WALL BEAM PER PLAN INTERIOR OR EXTERIOR STEEL STUD PER PLAN 1/8 2-12 CONT PL TO BEAM 2 S-620 1 S-620 CLIP & CONN PER AT EXT WALL ONLY 2 S-620
