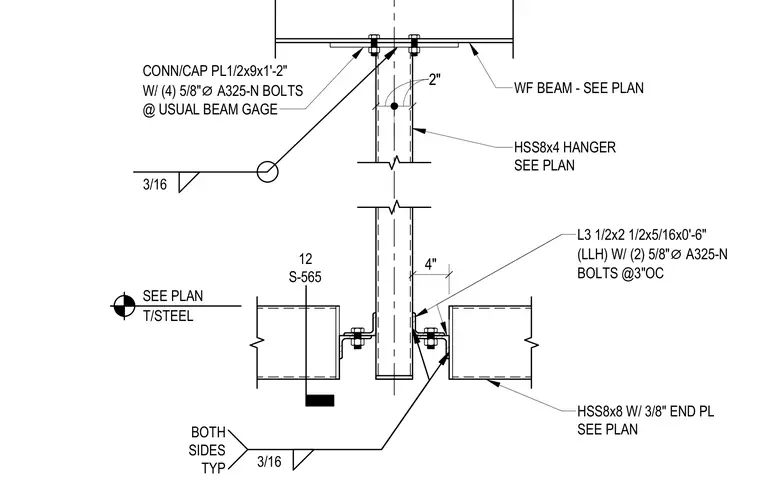

An HSS8x4 hanger connects to the underside of a wide-flange beam using a half-inch thick connection and cap plate measuring nine inches by one foot two inches, secured with four five-eighths-inch diameter A325-N bolts at the usual beam gauge. A three-sixteenth-inch fillet weld ties the hanger to the plate. Further down the assembly, two structural angles measuring three and a half by two and a half by five-sixteenths inches and six inches long connect to the hanger with two five-eighths-inch diameter A325-N bolts spaced at three inches on center. These angles tie into adjacent HSS8x8 members featuring three-eighths-inch end plates, with three-sixteenth-inch fillet welds on both sides typical.
2"2" T/STEEL SEE PLAN HSS8x4 HANGER SEE PLAN WF BEAM - SEE PLAN CONN/CAP PL1/2x9x1'-2" W/ (4) 5/8" ⌀ A325-N BOLTS @ USUAL BEAM GAGE 3/16 L3 1/2x2 1/2x5/16x0'-6" (LLH) W/ (2) 5/8" ⌀ A325-N BOLTS @3"OC . 3/16 BOTH SIDES TYP HSS8x8 W/ 3/8" END PL SEE PLAN 4" 12 S-565
