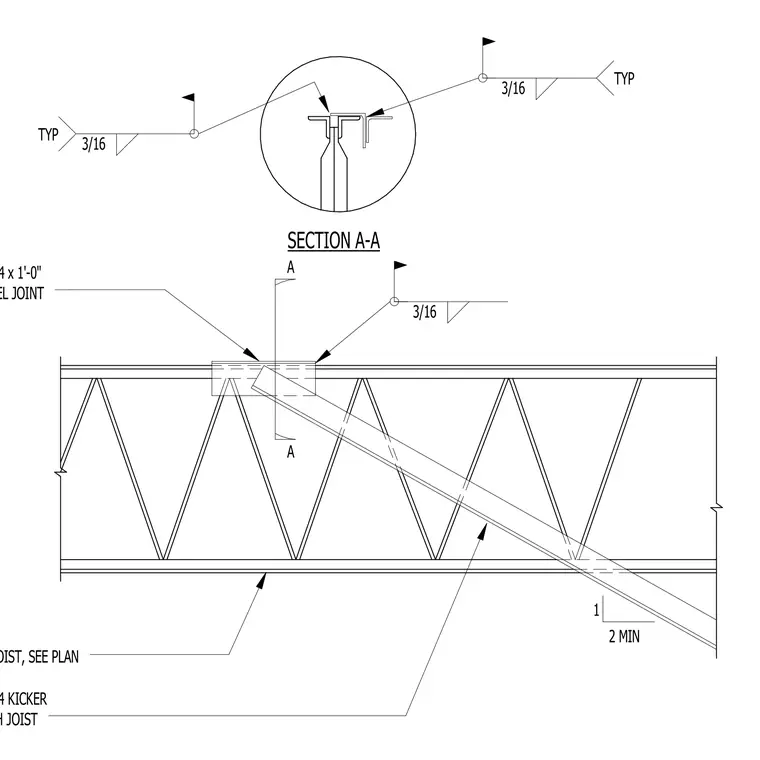

An angle kicker brace connects to a roof joist using a three-sixteenths inch typical fillet weld. A four-inch by four-inch by one-quarter-inch angle measuring one foot zero inches long is placed at the panel joint. A three-inch by three-inch by one-quarter-inch angle kicker is provided at each joist with welds specified at three-sixteenths of an inch. Section A-A provides a zoomed-in profile view of the top chord connection assembly.
SECTION A-A L3x3x1/4 KICKER AT EACH JOIST L4x4x1/4 x 1'-0" AT PANEL JOINT 2 MIN 1 ROOF JOIST, SEE PLAN A A 3/16 3/16 TYP 3/16 TYP
