The cold-formed steel stud wall features six-inch 18-gauge studs spaced at sixteen inches on center, supported by a bottom track assembly. Stiffclip model CL600-68 by TSN connects each stud using six number twelve self-tapping screws and a half-inch diameter by six-inch embedded epoxy anchor. The concrete stem wall bears on a continuous concrete footing, reinforced with vertical wall dowels matching the reinforcement above. A concrete slab on grade ties into the top of the foundation adjacent to the wall assembly.

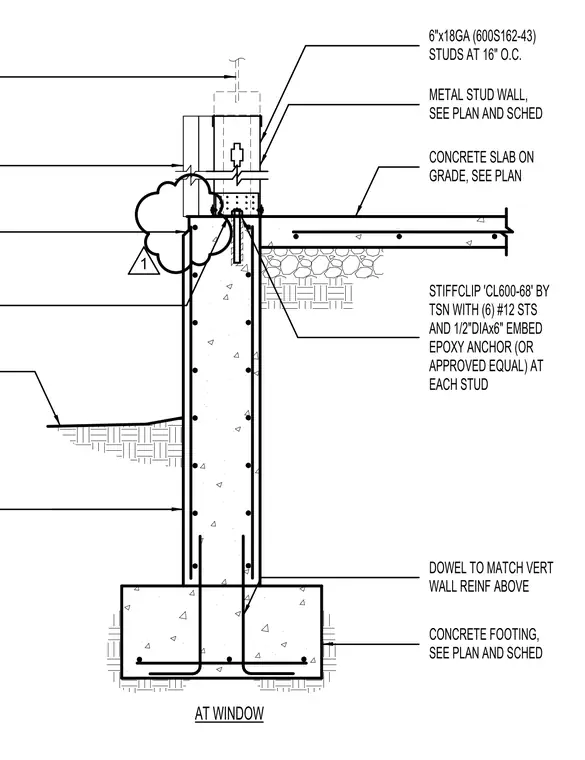

AT WINDOW CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE FOOTING, SEE PLAN AND SCHED STIFFCLIP 'CL600-68' BY TSN WITH (6) #12 STS AND 1/2"DIAx6" EMBED EPOXY ANCHOR (OR APPROVED EQUAL) AT EACH STUD METAL STUD WALL, SEE PLAN AND SCHED DOWEL TO MATCH VERT WALL REINF ABOVE 6"x18GA (600S162-43) STUDS AT 16" O.C. 1
