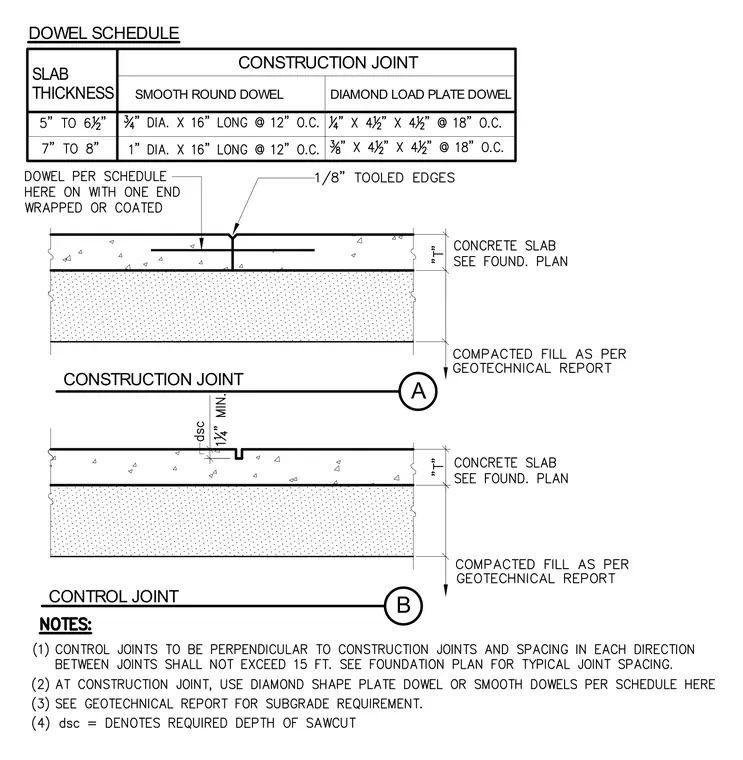

Concrete slab-on-grade details show construction and control joints bearing on compacted fill per geotechnical report. The construction joint incorporates smooth round dowels or diamond load plate dowels spaced per the dowel schedule, with dowels wrapped or coated on one end. The control joint features a tooled edge and sawcut of required depth "dsc" of one-quarter inch minimum. A dowel schedule relates slab thickness from five to eight inches to specific dowel diameters, lengths, and spacing.
CONSTRUCTION JOINT A CONTROL JOINT B CONSTRUCTION JOINT DIAMOND LOAD PLATE DOWEL SMOOTH ROUND DOWEL SLAB THICKNESS DOWEL SCHEDULE
