Structural · S-9WG4N

Canopy Support Framing and Hanger Rod Detail

Materials

Steel

Elements

Columns Roofs Parapets Canopies

Connections

HSS Connection Welded Connection

About this detail

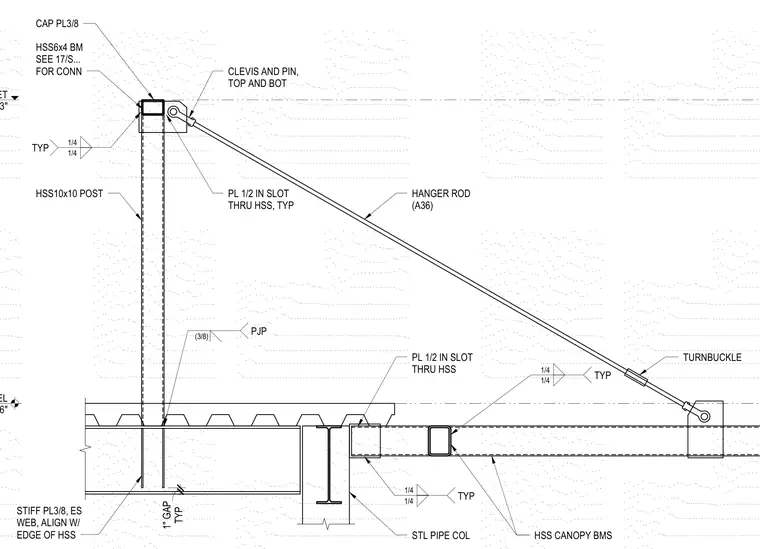

An HSS10x10 vertical post supports an HSS6x4 canopy beam at the roof level, capped with a three-eighths-inch plate welded with a partial joint penetration weld and quarter-inch fillet welds. A diagonal A36 hanger rod connects back to the post using a clevis and pin assembly fastened to a half-inch plate slotted through the hollow structural section. The lower end of the hanger rod secures to the HSS canopy beams, which feature an intermediate turnbuckle for tension adjustment and standard quarter-inch fillet welds at framing intersections. A three-eighths-inch stiffener plate aligns with the edge of the structural tubing web at the roof level support.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
