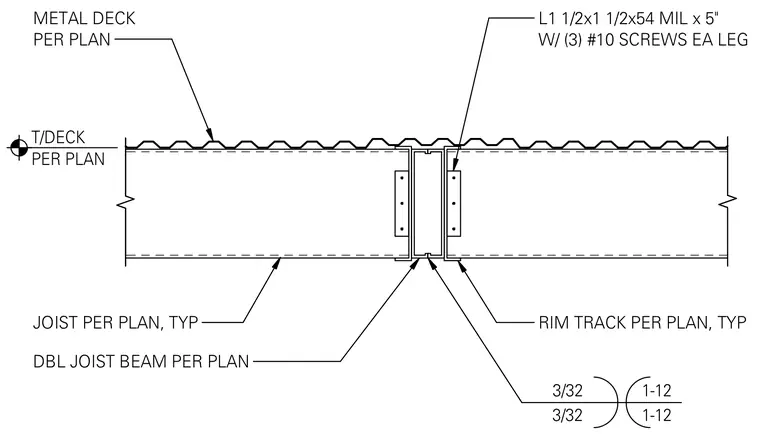

The assembly features metal deck supported by double joist beams sized per plan, with rim tracks typical at the edge condition. A 1 1/2-inch by 1 1/2-inch by 54-mil angle is attached with three number-10 screws on each leg. Connection details are designated with welding and fastening callouts.
T/DECK PER PLAN METAL DECK PER PLAN L1 1/2x1 1/2x54 MIL x 5" W/ (3) #10 SCREWS EA LEG RIM TRACK PER PLAN, TYP JOIST PER PLAN, TYP DBL JOIST BEAM PER PLAN 3/32 1-12 3/32 1-12
