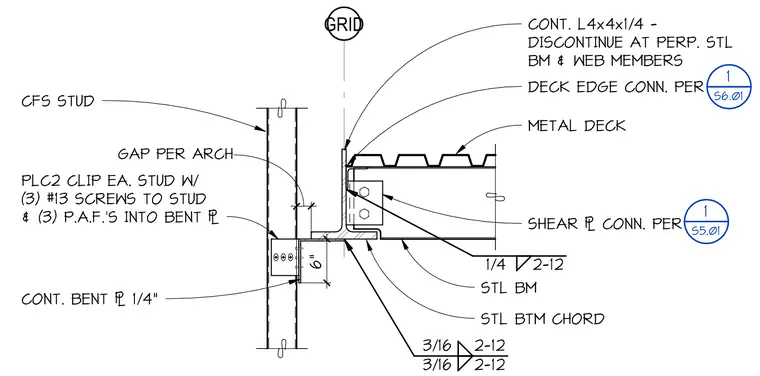

A cold-formed steel stud aligns with a building grid adjacent to a structural steel beam supporting a metal deck. The steel beam bottom chord features a continuous L4x4x1/4 angle that discontinues at perpendicular steel beams and web members, with shear plate connections and deck edge connections detailed on separate sheets. A continuous 6-inch quarter-inch bent plate attaches to the cold-formed steel stud via a PLC2 clip with three number 13 screws and three powder-actuated fasteners into the bent plate. A designated gap is maintained per architectural drawings between the framing components.
GRID 3/16 2-12 3/16 2-12 STL BTM CHORD 1/4 2-12 STL BM CONT. L4x4x1/4 - DISCONTINUE AT PERP. STL BM & WEB MEMBERS SHEAR & CONN. PER 1 S5.01 METAL DECK DECK EDGE CONN. PER 1 S6.01 6" CONT. BENT & 1/4" PLC2 CLIP EA. STUD W/ (3) #13 SCREWS TO STUD & (3) P.A.F.'S INTO BENT & CFS STUD GAP PER ARCH
